NJRC_NJR2841EN New Japan Radio 2LO PLL LNB (10.7 to 11.7 GHz/11.7 to 12.75 GHz) Low Noise Block External Reference N-Type Connector

NJRC_NJR2841EN New Japan Radio 2LO PLL LNB (10.7 to 11.7 GHz/11.7 to 12.75 GHz) Low Noise Block External Reference N-Type Connector

New Japan Radio NJRC NJR2841EN 2LO PLL LNB (10,7 a 11,7 GHz/11,7 a 12,75 GHz) Conector tipo N de referencia externa de bloque de bajo ruido

 IKtechcorp es el distribuidor de New Japan Radio Company (NJRC), un fabricante y proveedor líder de equipos satelitales comerciales. NJRC/JRC ofrece una amplia gama de Block Up Converters (BUC), Low Noise Blocks (LNB) ) y amplificadores de bajo ruido (LNA)

<× • Frecuencia local conmutable: 9,75/10,6 GHz
Frecuencia de RF : 10,7 a 12,75 GHz
(10,7 a 11,7 GHz/11,7 a 12,75 GHz)
• Opción de conector: tipo N, hembra (50 ohmios)
• Cobertura completa de banda Ku
• Alineación de conmutación local
• La alineación de cambio local depende de la referencia externa

em> • Tamaño pequeño y peso liviano

em> • Tamaño pequeño y peso liviano

Código: NJRC_NJR2841EN
$325,00

New Japan Radio NJRC NJR2841EN 2LO PLL LNB (10.7 to 11.7 GHz/11.7 to 12.75 GHz) Low Noise Block External Reference N-Type Connector

New Japan Radio NJRC NJR2841EN 2LO PLL LNB (10.7 to 11.7 GHz/11.7 to 12.75 GHz) Low Noise Block External Reference N-Type Connector Product Picture, Image, Price, Pricing

Summary

For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.



Summary of Features:

RF Frequency (Universal Ku-band)
Low Band: 10.7 to 11.7 GHz
High Band: 11.7 to 12.75 GHz

IF Frequency
Low Band:
950 to 1,950 MHz
High Band:
1,100 to 2,150 MHz

Local Frequency
Low Band:
9.75 GHz
High Band:
10.6 GHz

Input Interface Waveguide, WR75 (with Groove)
Output Interface N-type, female (50 ohm)
Noise Figure (at +25 C) 0.8 dB typ.
Conversion Gain (at +25 C) 48 dB min., 62 dB max.
Input Voltage +24 VDC (+12 to +24 VDC)
Current Drain 200 mA max
Weight 240 g [0.53 lbs]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJR2841EN 2LO PLL LNB (10.7 to 11.7 GHz / 11.7 to 12.75 GHz) Low Noise Block External Reference N-Type Connector



TYPICAL SPECIFICATIONS


RF Frequency (Universal Ku-band)
Low Band: 10.7 to 11.7 GHz
High Band: 11.7 to 12.75 GHz

IF Frequency
Low Band:
950 to 1,950 MHz
High Band:
1,100 to 2,150 MHz

Local Frequency
Low Band:
9.75 GHz
High Band:
10.6 GHz

Input Interface Waveguide, WR75 (with Groove)
Output Interface N-type, female (50 ohm)
Noise Figure (at +25 C) 0.8 dB typ.
Conversion Gain (at +25 C) 48 dB min., 62 dB max.
Input Voltage +24 VDC (+12 to +24 VDC)

L.O. Phase Noise (SSB)
@ 100 Hz -50 dBc/Hz max.
@ 1 kHz -70 dBc/Hz max.
@ 10 kHz -75 dBc/Hz max.
@ 100 kHz -85 dBc/Hz max.

L.O. Leakage Level
at the IF Output Connector -40 dBm max.
at the RF Input Flange -60 dBm max.

Spurious
Fixed frequency spur, unrelated to test CW signal (Measured at specified IF band). -120 dBm max.at input
With test CW signal -10 dBm IF output (Measured at specified IF band). -40 dBc max.

Input V.S.W.R. 2.5 : 1 typ.
Output V.S.W.R. 2.3 : 1 max.
Power Requirement +24 VDC (+12 to +24 VDC)
Current Drain 200 mA max.

Mechanical & Environmental
Temperature Range (ambient) -40 to +60 C (operating)
-40 to +80 C (storage)
Dimension & Housing
(without Interface Connectors/Switches)
82.2 mm (L) x 40 mm (W) x 40 mm (H)
[3.24" (L) x 1.57" (W) x 1.57" (H)]
Weight 240 g   [0.53 lbs]


Technical Specifications Diagram

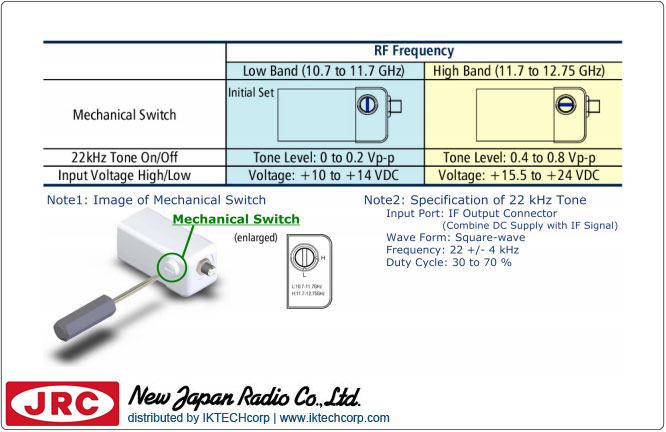

New Japan Radio NJRC NJR2841EN 2LO PLL LNB (10.7 to 11.7 GHz / 11.7 to 12.75 GHz) Low Noise Block External Reference N-Type Connector Specifications of Local Switch

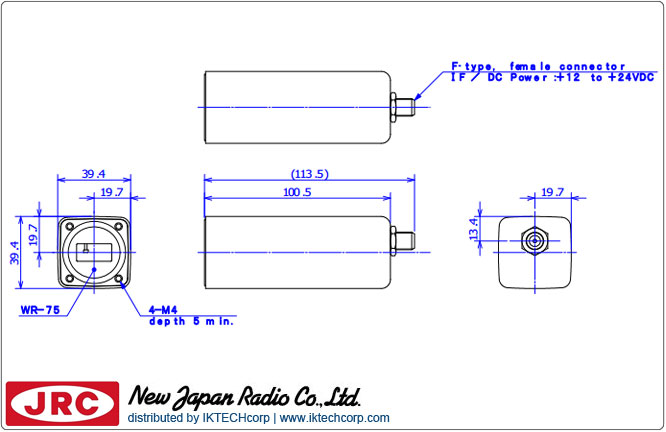

New Japan Radio NJRC NJR2841EN 2LO PLL LNB (10.7 to 11.7 GHz / 11.7 to 12.75 GHz) Low Noise Block External Reference N-Type Connector Mechanical Diagram Drawing



Compliance Standard
