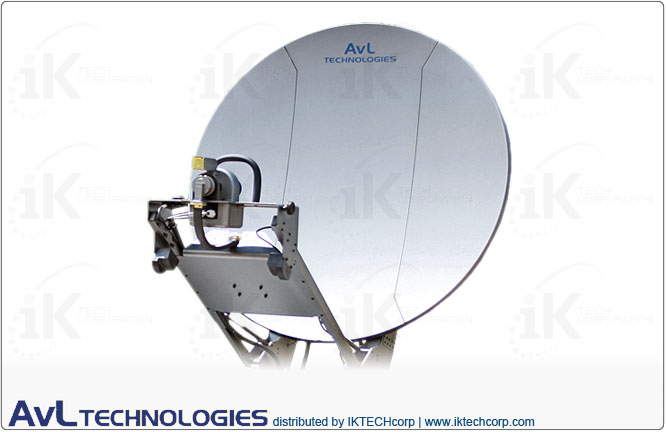

AvL Premium 2012 SNG de 2,0 m de Vehículo Motorizado de Montaje de la Antena de Satélite Modo de Pareados en Banda Ku
AvL 2012 Premium SNG/Military 2.0m Antena satelital motorizada transportable para montaje en vehículo Banda Ku de 2 puertos combinada con modo (compatibilidad mejorada Cross-Pol)
• Rx/Tx Feed: Banda Ku (CP) de modo combinado de 2 puertos
- Recibir : 10,95 - 12,75 GHz
- Transmitir: 13,75 - 14,50 GHz
- Comp. Cross-Pol mejorada.
• Se almacena a 20 "de alto (51 cm de alto)
- Cojinete azimutal de alta precisión
- Controlador Jog de 3 ejes con almacenamiento automático
- Accionamiento de cable AvL sin holgura
- 400 ° Az & Movimiento 0-90 ° El
AvL 2012 Premium SNG/Military 2.0m Motorized Transportable Vehicle-Mount Satellite Antenna 2-Port Mode-Matched Ku-Band (enhanced Cross-Pol comp.)
 |
||
| Summary | ||
| AvL 2012 Premium SNG/Military
2.0m Motorized Transportable Vehicle-Mount Satellite Antenna 2-Port Mode-Matched Ku-Band (enhanced Cross-Pol comp.)
AvL's 2.0m vehicle-mount/drive away SNG antenna systems offer strong performance in a small, lightweight and low-profile package. The 2.0m antenna systems offer standard Ku-band with C, Ka, L and X-band optional. The antennas feature integrated GPS and level sensors for automatic vehicle tilt compensation. AvL’s SNG antennas are designed to meet and exceed the highest performance requirements around the world to guarantee both satellite authority compliance and peak in performance, reliability and availability. Typically these antennas are used in signal contribution for high data rate and bandwidth as well as high power broadcast or similar applications. AvL 2012 Ku-Band Vehicle-Mount Premium SNG Antenna Systems feature: • Non-load-bearing 2.0m AvL carbon fiber single-piece reflector with surface treatment for Ka-band • Optional three-piece CF reflector with removable wings, manually folding hinged wings, or motorized folding hinged wings • High-precision azimuth bearing • Integrated backing structure for minimized stow height • Wide booms to allow larger HPA envelope • Jog control or fully automatic auto-acquisition controllers • Feed options for Ku-, Ka- and X-band; optional C-band for international • RF electronic mounting either on feed boom, back of reflector, base, or inside vehicle • 25ft (8m) RG59 coax and controller interconnect cables • Zero backlash AvL Cable Drive with 400° Az & 0-90° El movement • Stows to 20" H (51 cm H) • Optional saddlebag mount for larger HPAs • High-torque elevation motor • Through-pedestal cross-axis waveguide kit • Optional Transmit Rotary Joint on Feed • Limited function 3-axis jog controller with auto-stow • Optional aerodynamic cowlings • Aerodynamic cowling is available |
||
| Technical Specifications Diagram | ||
