New Japan Radio NJT8103F 3W C-Band (Estándar 5.85 a 6.425 GHz) Convertidor en bloque BUC Entrada de conector tipo F

IKtechcorp es el distribuidor de New Japan Radio Company (NJRC), un fabricante y proveedor líder de equipos satelitales comerciales. NJRC/JRC ofrece una amplia gama de convertidores Block Up (BUC), Low Noise Blocks (LNB) y Low Noise Amplificadores (LNA)

<× * Línea de frecuencia de RF
• Banda C completa: 5,85 a 6,725 GHz (P1dB )
• Banda C estándar: 5,85 a 6,425 GHz
* Potencia de salida de alta eficiencia
• P1dB: +34,5 dBm mín. sobretemperatura
• ACPR: -24 dBc @ Pout = +34.

New Japan Radio NJRC NJT8103F 3W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC F-Type Connector Input

New Japan Radio NJRC NJT8103F 3W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC F-Type Connector Input Product Picture, Image, Price, Pricing

Summary

For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.



Summary of Features:

RF Frequency 5.85 to 6.425 GHz (Standard C-band)
IF Frequency 950 to 1,525 MHz
Local Frequency 4.90 GHz
Input Interface F-type, female (75 ohm)
Output Power @ 1 dB G.C.P. +34.5 dBm min. over temperature
Linear Gain 59 dB nom., 53 dB min.
Power Requirement +12 to +30 VDC
Power Consumption 21 W
Weight 800 g [1.8 lbs ]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJT8103N 3W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC N-Type Connector Input



TYPICAL SPECIFICATIONS


RF Frequency 5.85 to 6.425 GHz (Standard C-band)
IF Frequency 950 to 1,525 MHz
Local Frequency 4.90 GHz
Input Interface N-type, female (75 ohm)
Output Power @ 1 dB G.C.P. +34.5 dBm min. over temperature
Linear Gain 59 dB nom., 53 dB min.
Gain Variation over frequency 5 dBp-p max. over 575 MHz / 2 dBp-p max. over 36 MHz
Gain Stability over temperature 2 dBp-p typ., 5 dBp-p max.

Requirement for External Reference
Frequency 950 to 1,525 MHz
ACPR -26 dBc typ. @ Pout = +34.5 dBm

L.O. Phase Noise
@ 100 Hz -60 dBc/Hz max.
@ 1 kHz -70 dBc/Hz max.
@ 10 kHz -80 dBc/Hz max.
@ 100 kHz -90 dBc/Hz max.

Input V.S.W.R. 2 : 1 max
Output V.S.W.R. 2 : 1 max
Power Requirement +12 to +30 VDC
Power Consumption 21 W
Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal

Mechanical & Environmental
Temperature Range (ambient) -40 to +60 C (operating)
-40 to +75 C (storage)
Dimension & Housing ( without Interface Connectors ) 135.4 (L) × 85 (W) × 56 (H) mm [5.33” (L) x 3.35” (W) x 2.20” (H)]
Weight 800 g [1.8 lbs ]


Technical Specifications Diagram

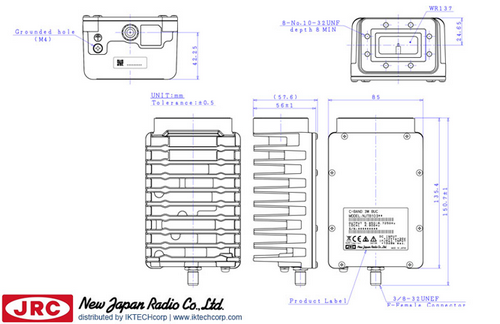

New Japan Radio NJRC NJT5667F 2W C-Band (Standard 5.85 to 6.425 GHz) Block Up Converter BUC F-Type Connector Input Mechanical Diagram Drawing
