NJT5836H New Japan Radio 10W de la Banda Ka (28,172 a 29,071 GHz) Bloque Convertidor BUC N-Tipo de Conector de Entrada de

NJT5836H New Japan Radio 10W de la Banda Ka (28,172 a 29,071 GHz) Bloque Convertidor BUC N-Tipo de Conector de Entrada de
con hasta +37 dBm de salida
• Consumo de energía: 170 W máx.
* Función Ethernet M&C equipada
• Control de ganancia: rango de 15 dB, paso de 1 dB
• Monitor de potencia: rango dinámico de 12 dB
* Rendimiento confiable en todo tipo de clima
Código: NJT5836H
Llamar para preguntar el precio

New Japan Radio NJRC NJT5836H 10W Ka-Band (28.172 to 29.071 GHz) Block Up Converter BUC N-Type Connector Input

New Japan Radio NJRC NJT5836H 10W Ka-Band (28.172 to 29.071 GHz) Block Up Converter BUC N-Type Connector Input Product Picture, Image, Price, Pricing

Summary
For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.


Summary of Features:

RF Frequency 28.172 to 29.071 GHz
IF Frequency 972 to 1,871 MHz
Local Frequency 27.200GHz
Input Interface N-type, female
Saturation Output Power +40 dBm
Linear Gain 61 dB min., 71 dB max.
Power Requirement +22 to +56 VDC
Power Consumption 170 W max.
Weight 4.5kg [9.9 lbs]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJT5836H 10W Ka-Band (28.172 to 29.071 GHz) Block Up Converter BUC N-Type Connector Input



TYPICAL SPECIFICATIONS

Output Interface Waveguide, WR28 (with Groove)
RF Frequency 28.172 to 29.071 GHz
IF Frequency 972 to 1,871 MHz
Local Frequency 27.200 GHz
Input Interface N-type, female
Saturation Output Power +40 dBm
Linear Gain 61 dB min., 71 dB max.

Requirement for External Reference ▼
Frequency 10 MHz
Input Power -5 to +5 dBm @ Input port
Phase Noise -105 dBc/Hz max. @ 10 Hz, -130 dBc/Hz max. @ 100 Hz,
-150 dBc/Hz max. @ 1 kHz, -155 dBc/Hz max. @ 10 kHz
ACPR -25 dBc max. with up to +37 dBm output

L.O. Phase Noise -60 dBc/Hz max. @100 Hz, -73 dBc/Hz max. @1 kHz
-83 dBc/Hz max. @ 10 kHz, -93 dBc/Hz max. @ 100 kHz

Input Return Loss 10 dB
Output Return Loss 15 dB
Power Requirement +22 to +56 VDC
Power Consumption 170 W max.
Monitor and Control Interface
Ethernet (Option: RS-232C)
Function
Temperature / Output Power Monitor (12 dB Dynamic Range) / LO Status
/ Output Mute (TX ON/OFF) / Gain Control (15 dB Range, 1 dB Step)

Mechanical & Environmental ▼
Temperature Range (ambient) -20 to +55 °C (Operating)
-20 to +55 °C(Storage)
Dimension & Housing ( without Interface Connectors ) 168 mm (L) x 149.6 mm (W) x 90 mm (H) [6.61” (L) x 5.89” (W) x 3.54” (H)] ( without Interface Connectors)
Weight 4.5kg [9.9 lbs]


Technical Specifications Diagram

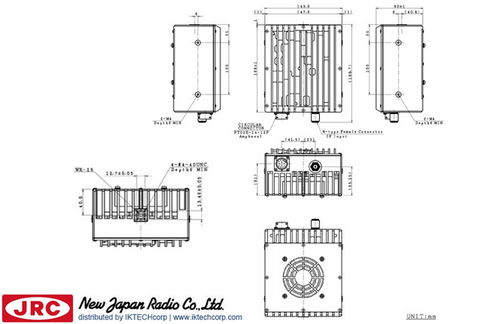

New Japan Radio NJRC NJT5836H 10W Ka-Band (28.172 to 29.071 GHz) Block Up Converter BUC N-Type Connector Input Mechanical Diagram Drawing
