AvL 2020FA 2,0m Военная Моторизованная Четырехдиапазонная Антенна X-Band

AvL 2020FA 2,0m Военная Моторизованная Четырехдиапазонная Антенна X-Band

AvL 2020FA 2,0 м военная моторизованная четырехдиапазонная антенна FlyAway, 2 порта Precision X-Band

IKtechcorp является дистрибьютор AVL Antanna Systems, ведущего производителя и поставщика коммерческого спутникового оборудования. AVL Technologies предлагает широкий спектр антенн, используемых в VSAT, DTH, COTM, телепортации, кабельной и широковещательной отраслях. Спутник, DTH, VSAT, Flyaway, быстрое развертывание , только прием, RF, моторизованная автомобильная точка, автомобильные антенны
• Rx/Tx Feed: 2-Port X-Band Military
- Прием:
- Передача:
<

Модель: avl_2020fa_2m_x

AvL 2020FA 2.0m Military Motorized Quad-Band FlyAway Antenna 2-port Precision X-Band

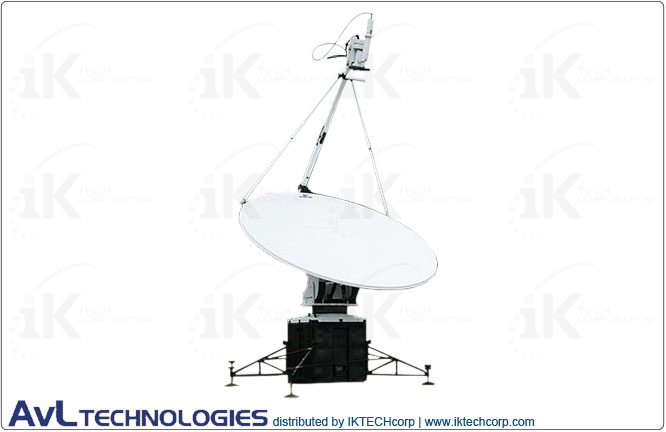

AvL 2020FA 2.0m Military Motorized Quad-Band FlyAway Antenna 2-port Precision X-Band Product Picture, Price, Image, Pricing

Summary

AvL 2020FA 2.0m Military Motorized Quad-Band FlyAway Antenna 2-port Precision X-Band

AvL's Model 2.0m 2020FA FlyAway Military antenna system offers standard wind performance in a lightweight and portable package. All 2020FA FlyAway SNG antenna systems have positioners integrated into cases for easy set-up; these antennas can be flown anywhere, then set up and operational within minutes.  These antenna systems are produced in high volume for a significant U.S. Army program.

AvL’s FlyAway Military antennas are designed to meet and exceed the highest performance requirements around the world to guarantee both satellite authority compliance and peak in performance, reliability and availability.

Each Flyaway Antenna is priced to include the AvL carbon fiber antenna and auto-acquisition controller for ease of operation. As with all AvL antenna systems, no laptop is necessary to operate the controller, the antennas interface with any modem, RF electronics, or satellite service.

AvL 2020FA Ka-Band 2.0m Military Systems feature:
• Packs into three or four cases depending on options selected; positioner is integrated into one
• 2.0m Segmented 9-piece Carbon Fiber Reflector
• 2-man lift
• 2220 Rugged/Heavy Duty Case-Based Positioner
• Quad-band feed capability:
-Ku-Band (LP)
-Ka-Band (LP or CP)
-X-Band (CP)
-C-Band (LP or CP) available for some international locations
• Zero Backlash Az/El drive system with patented AvL Cable Drive Positioner
• Elevation over azimuth mount geometry
• Polarization adjustment by motorized rotation of linear feeds
• Case-based systems with the positioner integrated into one case for stability and ease of set-up
• Fully compliant for FCC and Intelsat; Eutelsat compliance optional
• One button auto-acquisition controller
• 15-Minute Setup

While the vast majority of military applications to date have relied on commercial satellite interoperability, especially at Ku-band, AvL is now leading the industry in the delivery of systems that will operate over the next generation of military satellites, including Xtar (X-band) and the new US Army Wideband Global Satellite (WGS) constellation (X- and Ka-band). Most of our military antennas can be offered with upgradability to X- and Ka-bands of operation.

AvL antennas interface easily with all RF systems and are compliant with FCC and Intelsat requirements for 2° spacing as well as optional models for meeting Eutelsat and Asiasat criteria. AvL antennas are also in the certification process for operation over the US Army DSCS and WGS satellites.




Technical Specifications Diagram
Inquire

AvL 2020FA 2.0m Military Motorized Quad-Band FlyAway Antenna 2-port Precision X-Band

MECHANICAL SPECIFICATIONS

Az/El Drive Motorized AvL Zero Backlash Cable Drive (Patent Pending)
Polarization Drive System Motorized Rotation of Feed
Reflector Construction 2.0m Segmented 9-piece Carbon Fiber

Axis Travel
Azimuth ±200°
Elevation (operational) 0° - 90° with ±200° Az Travel
Polarization (LP feeds) ±95° Adjustable within <1°

Az/El Speed:
Slewing/Deploying (typical) 2°/sec Elevation: 1°/sec El
Peaking (typical) 0.2°/sec

Motors 24 VDC Variable Speed, Constant Torque

Standard Interfaces:
BUC Mounting Feed boom or behind reflector (additional CFE case or optional case required)
RF Std. 50 ohm Coax (2) at base, cover flange at feed Tx port
Electrical 30 ft. cable with connectors for controller

Manual/Emergency Drive Handcranks for Az and El, Knob on Pol axis

Transit Configuration:
Three rugged, weather-resistant plastic cases, total weight: 450 lbs.
2020 Motorized Positioner 26" x 24" x 30", 170 lbs
Outriggers/Feed Boom/Ku or Ka Feed 71” x 18” x 19”, 110 lbs. (includes Ku or Ka feed)
Reflector Panels 38” x 38” x 22”, 170 lbs.
Additional Feeds 43” x 27” x 20”, 70 lbs. typical, dependent on feed options selected (optional)
Set-up Time Less than 15 minutes.

ENVIRONMENTAL SPECIFICATIONS

Wind – Survival 80 mph in zenith position
Wind - Operational: ▼
Without Anchoring 30 mph
With Anchoring 30 mph gusting to 45 mph

Pointing Loss in Wind:
Ku-band 0.1 dB typical, 0.5 dB max
Ka-band 1.0 dB typical, 2 dB max

Temperature:
Operational -22° to 125° F (-30° to 52° C)
Survival -40° to 140° F (-40° to 60° C)

RF / ELECTRICAL SPECIFICATIONS Receive Transmit

Feed Type Opt. 2-Port X (Military/WGS)



Frequency Range (GHz) 7.25 - 7.75 7.9 - 8.4
Polarization Configuration Circular RHCP or LHCP
Gain (mid-band) @ Horn Interface (dBi) 42.0 dBi 42.8 dBi
VSWR 1.30:1
-3dB Beamwidth (mid-band) 1.2° 1.1°
Antenna Noise Temperature (midband) 50° K
Radiation Pattern Compliance MIL-STD-188-164A
Maximum Feed Transmit (Tx) Power   1000 watts per port
G/T with 50˚ LNB, midband, clear horizon 21.7 dB/° K (with 55°K LNB)
Axial Ratio (CP only, within pointing cone ) 1.21 dB 2.0 dB
Feed Port Isolation – TX to RX (dB) 115 (includes filter) 115 (includes filter)


CONTROLLER SPECIFICATIONS: STANDARD

Controller Type Std. Auto-Acquire with Opt. Ethernet IP Interface
Standard Feature
Fully-automatic satellite acquisition, with automatic azimuth, elevation and cross-polarization peaking; includes on-board, one-button deploy/acquire interface for pre-configured systems; includes on-board GPS, electronic compass, level sensors and auto-compensation; customer-configurable satellite list. Note: Beacon Receiver or Modem as acquisition signal source may be required for non-commercial satellites

Integration Embedded w/ Handheld, incl. Shelf-Mount P/S (optional 1RU w/ front-panel keypad + integral P/S)
User Interface Menu-driven display w/ keypad
Input Power 115/230 VAC (at rack); up to 200W
Software Upgrades/Options Inclined orbit tracking (using step-track or TLE track); automatic band sensing

CONTROLLER SPECIFICATIONS: OPTIONAL

Controller Type Opt. Enhanced Auto-Acquire with Ethernet IP Interface
Standard Feature
Fully-automatic satellite acquisition, with automatic azimuth, elevation and cross-polarization peaking; includes on-board, one-button deploy/acquire interface for pre-configured systems; includes on-board GPS, electronic compass, level sensors and auto-compensation; customer-configurable satellite list. Note: Beacon Receiver or Modem as acquisition signal source may be required for non-commercial satellites

Integration Embedded w/ Ethernet IP Interface (P/S optional) (optional rack-mount P/S available)
User Interface Intelligent/simple GUI for on-board or remote CFE laptop
Input Power 28V DC (at antenna positioner); optional 115/230 VAC rack-mount power supply; up to 200W
Software Upgrades/Options Inclined orbit tracking (using step-track, memory track, or TLE track); automatic band sensing

Available Options, Upgrades & Services

Optional:
• BUC/HPA mounting
• Optional 75 ohm coax
• Waveguide interconnect options
• Beacon receiver – inclined orbit tracking – resolvers/upgrade
• Grounding options (lightning conductor)
• Anchoring kit options
• Custom logo on reflector face (1- or 2-color; per AvL Logo Policy)
• Controller options – see above
• Spare parts kit
