NJT8306UF New Japan Radio 6W Ku-диапазон (Universal 13,75 to 14,5GHz) Block Up Converter BUC F-Type Connector Input

NJT8306UF New Japan Radio 6W Ku-диапазон (Universal 13,75 to 14,5GHz) Block Up Converter BUC F-Type Connector Input

New Japan Radio NJRC NJT8306UF, 6 Вт, Ku-диапазон (универсальный, от 13,75 до 14,5 ГГц), блочный преобразователь, BUC, разъем типа F

 IKtechcorp является дистрибьютором New Japan Radio Company (NJRC), ведущего производителя и поставщика коммерческого спутникового оборудования. NJRC/JRC предлагает широкий спектр блочных преобразователей (BUC), малошумящих блоков (LNB) и малошумящих блоков. Усилители шума (МШУ) »/> </p> <p><▪  * Диапазон частот ВЧ  </strong> <br /> • Универсальный диапазон Ku: от 13,75 до 14,5 ГГц <br /> • Стандартный Ku-диапазон: от 14,0 до 14,5 ГГц <br /> <strong>  * Высокоэффективная выходная мощность  </strong> <br /> • P1dB: +37,8 дБм мин. перегрев <br /> • ACPR:</div>

                <div class=

Модель: NJT8306UF
$699.00

New Japan Radio NJRC NJT8306UF 6W Ku-Band (Un

New Japan Radio NJRC NJT8306F 6W Ku-Band (Standard 14.0 to 14.5 GHz) Block Up Converter BUC F-Type Connector Input

IKtechcorp is the distributor for New Japan Radio Company (NJRC), a leading manufacturer and supplier of commercial satellite equipment. NJRC/JRC offers a wide range of Block Up Converters (BUCs), Low Noise Blocks (LNBs) and Low Noise Amplifiers (LNAs)

* RF Frequency Line-up
• Universal Ku-band: 13.75 to 14.5 GHz
• Standard Ku-band: 14.0 to 14.5 GHz
* High Efficiency Output Power
• P1dB: +37.8 dBm min. over temperature
• ACPR: -30 dBc @ Pout = +37.8 dBm
• Power Consumption: 40 W
* LED Indicator Equipped
• Monitering L.O. Lock
* Smaller Size & Lighter Weight
• Dimension: 174.9 (L) × 84 (W) × 59.2 (H) mm
• Weight: 1.2 kgiversal 13.75 to 14.5GHz ) Block Up Converter BUC F-Type Connector Input
New Japan Radio NJRC NJT8306UN 6W Ku-Band (Universal 13.75 to 14.5GHz ) Block Up Converter BUC N-Type Connector Input Product Picture, Image, Price, Pricing

Summary

For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.



Summary of Features:

RF Frequency 13.75 to 14.5GHz (Universal Ku-band)
IF Frequency 950 to 1,700 MHz
Local Frequency 12.80 GHz
Input Interface F-type, female
Output Power @ 1 dB G.C.P. +37.8 dBm min. over temperature
Linear Gain 62 dB nom., 56 dB min.
Power Requirement +12 to +30 VDC
Power Consumption 40 W
Weight 1.2kg [2.6 lbs]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJT8306UF 6W Ku-Band (Universal 13.75 to 14.5GHz) Block Up Converter BUC F-Type Connector Input



TYPICAL SPECIFICATIONS


Output Interface Waveguide, WR75 (with Groove)
RF Frequency 13.75 to 14.5GHz (Universal Ku-band)
IF Frequency 950 to 1,700 MHz
Local Frequency 12.80 GHz
Input Interface F-type, female
Output Power @ 1 dB G.C.P. +37.8 dBm min. over temperature
Linear Gain 62 dB nom., 56 dB min.

Requirement for External Reference
Frequency 10 MHz
Input Power -5 to +5 dBm @ Input port
Phase Noise -125 dBc/Hz max. @ 100 Hz
-135 dBc/Hz max. @ 1 kHz
-140 dBc/Hz max. @ 10 kHz
ACPR -30 dBc typ., -24 dBc max. @ Pout = +37.8 dBm

L.O. Phase Noise
-60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
-100 dBc/Hz max. @ 1 MHz

Receive Band Noise Density @ Pout <= +36 dBm -156 dBm/Hz max. @10.95 to 12.25 GHz
-125 dBm/Hz max. @12.25 to 12.75 GHz
-156 dBm/Hz max. @10.95 to 12.75 GHz
Input V.S.W.R. 2.0 : 1 max
Output V.S.W.R. 1.3 : 1 max
Power Requirement +12 to +30 VDC
Power Consumption 40 W
Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal

Mechanical & Environmental
LED Indicator GREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal
Temperature Range (ambient) -40 to +65 °C (Operating Guarantee)
-40 to +60 °C (Performance Guarantee)
-40 to +75 °C
Waterproof/Dustproof (IP Code) IP 67
Dimension & Housing ( without Interface Connectors ) 174.9 mm (L) x 84 mm (W) x 59.2 mm (H) [6.89" (L) x 3.31" (W) x 2.33" (H)]
Weight 1.2kg [2.6 lbs]]


Technical Specifications Diagram

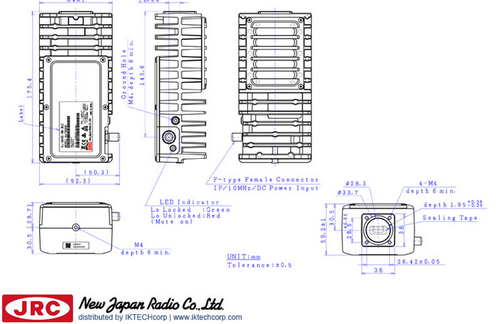

New Japan Radio NJRC  NJT8306UF 6W Ku-Band (Universal 13.75 to 14.5GHz ) Block Up Converter BUC F-Type Connector InputMechanical Diagram Drawing



Compliance Standard
