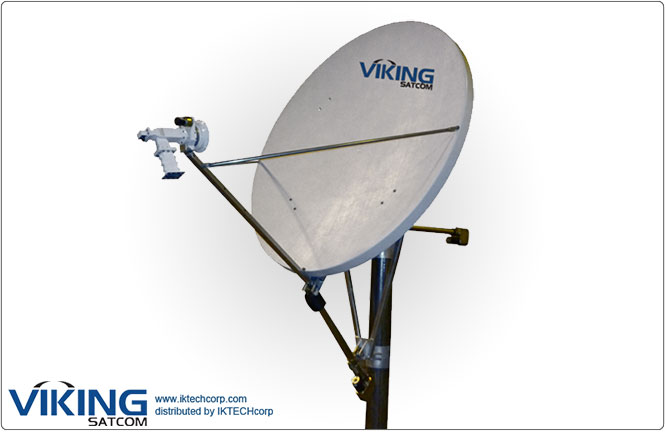

VIKING P-180KUI Prodelin 1,8 meter Ku Band TX RX VSAT Transmit Receive Antenna (Prodelin Series 1184)
VIKING P-180KUI Prodelin 1.8 meter Ku Band TX RX VSAT Transmit Receive Antenna (Prodelin Series 1184)
 |
||
| Summary | ||
| VIKING P-180KUI Prodelin 1.8 meter Ku Band TX RX VSAT Transmit Receive Antenna Prodelin Series 1184 VIKING P-180KUI Feature: • 1.8 Meter Offset Transmit Receive Antenna • Intelsat Type Approved - Ku Linear & C Circular • Available with Ku and C band Feed Options • Precision Compression Molded Reflector • NPRM or Pedistal Mounts Available • Two axis tracking configurations available |
||
| Summary of Features: | Series 1184 Ku-Band | |
| Antenna Size | 1.8 M (71 in.) | |
| Operating Frequency (GHz) |
||
| Receive Transmit |
10.95 - 12.75 GHz 13.75 - 14.50 GHz |
|
| Midband Gain ( +/- .5dB) | ||
| Receive Transmit |
45.20 dBi 46.70 dBi |
|
| Antenna Noise Temperature | ||
| 10° Elevation 20° Elevation 30° Elevation 40° Elevation |
44 K 38 K 35 K 33 K |
|
| Sidelobe Envelope | ||
| 1° ≤ q ≤ 20° | 29 - 25 Log dBi | |
| 20° | -3.5 dBi | |
| 26.3° | 32 - 25 Log dBi | |
| 48° | -10 dBi (averaged) | |
| Cross-Polarization (Linear) | >30 dB on axis | |
| Axial Ratio (Circular) | ||
| Receive Transmit |
. | N/A N/A |
| VSWR | 1.3:1 Max. | |
| Feed Interface | ||
| Receive Transmit |
Available in a variety of designs Available in a variety of designs |
|
| Technical Specifications Diagram | ||
| Inquire | ||
