VIKING FLT-MFC16709 Terrestrial Interference Bandpass Filter, Ku Band (10,95 - 12,75GHz)

VIKING FLT-MFC16709 地面干扰滤波器，Ku 带通滤波器 (10.95 - 12.75GHz)

IKtechcorp 是Viking SATCOM 的分销商，是商业卫星设备的领先制造商和供应商。Viking SATCOM 提供广泛的产品，用于 VSAT、DTH、COTM、移动、TVRO、教育、电信、有线和广播行业。卫星、DTH、 VSAT、Flyaway、快速部署、仅接收、地球站、RF、prodelin、机动自动点、车辆天线。还具有信标接收器、除冰系统、脱水器、馈送、过滤器、支架、冗余系统、雪盖等。”/></p> <p><span> Viking SATCOM 是商业卫星通信仅接收天线的领先制造商和分销商。Viking Satcom 通过提供和交付最先进的卫星天线提供“一站式”方法。以经济实惠的价格提供完整的产品、通信系统和配件系列。</span><br /><br /><br /></p></div>

<div class=

型号: VIKING_FLT-MFC16709

打电话问价

VIKING FLT-MFC16709 Terrestrial Interference Bandpass Filter, Ku Band (10.95 - 12.75GHz)



Summary
VIKING FLT-MFC16709 TI Filter, Ku Band Bandpass Filter (10.95 - 12.75GHz) True "bandpass" characteristics make this filter the choice to reject interference from the transmit band above and potential interference from sources below the operating band, making it more versatile that a simple transmit reject filter. VIKING FLT-MFC16709 Feature: • Ku Band Terrestrial Interference Filter • Passband: 10.95 - 12.75 GHz • Insertion Loss: 0.5dB Max • Passband VSWR: 1.2:1 Max • Flanges: WR75 Cover

Technical Specifications Diagram
See "Specifications" Tab

VIKING FLT-MFC16709 Terrestrial Interference Bandpass Filter, Ku Band (10.95 - 12.75GHz)

TYPICAL SPECIFICATIONS

*Passband*	10.95 - 12.75 GHz
Insertion Loss	0.5 dB Max
VSWR	1.2:1 Max
Reject Band	14.0 - 14.5 GHz and 10.40 - 10.60 GHz
Rejection	50 dB Typ 14.0 - 14.5 GHz 50 dB Typ 10.40 - 10.60 GHz
Pressurization	Sealed to 5 PSIG
Flanges	WR75 Cover
*Dimension*	6.5" x 1.5" x 1.5"

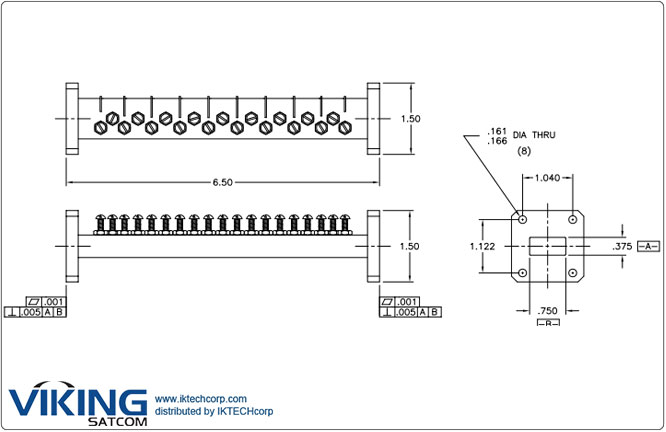

Technical Specifications Diagram

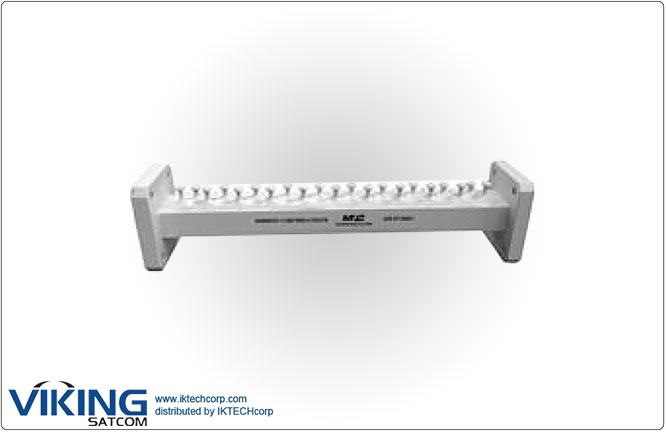

VIKING FLT-MFC16709 TI Filter, Ku Band Bandpass Filter (10.95 - 12.75GHz) Product Picture, Price, Image, Pricing Mechanical Diagram

Compliance Standard

Inquire

VIKING FLT-MFC16709 Filter Datasheet (558.35KB)
