NJRC_NJT8302F New Japan Radio 3W en Bande Ku (Standard de 14,0 14,5 GHz) Bloc Convertisseur BUC F-Type de Connecteur d'Entrée

NJRC_NJT8302F New Japan Radio 3W en Bande Ku (Standard de 14,0 14,5 GHz) Bloc Convertisseur BUC F-Type de Connecteur d'Entrée

New Japan Radio NJRC NJT8302F 3W Ku-Band (Standard 14,0 à 14,5 GHz) Block Up Converter BUC F-Type Connector Input

IKtechcorp est le distributeur de New Japan Radio Company (NJRC), l'un des principaux fabricants et fournisseurs d'équipements satellitaires commerciaux. NJRC/JRC propose une large gamme de convertisseurs Block Up (BUC), Low Noise Blocks (LNB) et Low Noise Blocks (LNB) Amplificateurs de bruit (LNA)

• Fréquence RF
14,0 à 14,5 GHz (bande Ku standard)

• Très haute efficacité et faible distorsion
P1dB : +34 dBm min. surchauffe
Consommation électrique : 18 W

Code produit: NJRC_NJT8302F
$259.00 $195.00

New Japan Radio NJRC NJT8302F 3W Ku-Band (Standard 14.0 to 14.5 GHz) Block Up Converter BUC F-Type Connector Input

New Japan Radio NJRC NJT8302N 3W Ku-Band (Standard 14.0 to 14.5 GHz) Block Up Converter BUC N-Type Connector Input Product Picture, Image, Price, Pricing

Summary

For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.



Summary of Features:

RF Frequency

14.0 to 14.5 GHz (Standard Ku-Band)

Output Interface

Waveguide, WR75 with Groove

Input Interface

F-type, female (75 ohm)

Output Power @ 1dB G.C.P.

+34 dBm min. over temperature

Linear Gain

58 dB typ., 51 dB min.

Power Requirement

DC Power, +24 V (Range: +12 to +30 V)

Power Consumption

18 W typ., 23 W max. @ Pout = +34 dBm



15 W max. @ No IF and +25 °C


2 W max. @ 10 MHz Reference Off (Mute on)
Weight

350 g [0.77 lbs]


Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJT8302F 3W Ku-Band (Standard 14.0 to 14.5 GHz) Block Up Converter BUC F-Type Connector Input



TYPICAL SPECIFICATIONS



RF Frequency

14.0 to 14.5 GHz (Standard Ku-Band)

Output Interface

Waveguide, WR75 with Groove

Input Interface

F-type, female (75 ohm)

Output Power @ 1dB G.C.P.

+34 dBm min. over temperature

Linear Gain

58 dB typ., 51 dB min.

ACPR

-26 dBc typ. @ Pout = +34 dBm


Requirement for External Reference

[Frequency]

10 MHz (sine-wave)

[Input Power]

-5 to +5 dBm @ Input port

[Phase Noise]



@ 100 Hz -125 dBc/Hz max.
@ 1 kHz -135 dBc/Hz max.
@ 10 kHz -140 dBc/Hz max.


L.O. Phase Noise



@ 100 Hz -60 dBc/Hz max.
@ 1 kHz -70 dBc/Hz max.
@ 10 kHz -80 dBc/Hz max.
@ 100 kHz -90 dBc/Hz max.
@ 1 MHz -100 dBc/Hz max.


Receive Band Noise Density

-156 dBm/Hz max. @ 10.95 to 12.75 GHz

Input V.S.W.R.

2 : 1 max.

Output V.S.W.R.

2 : 1 max.

Power Requirement

DC Power, +24 V (Range: +12 to +30 V)

Power Consumption

18 W typ., 23 W max. @ Pout = +34 dBm



15 W max. @ No IF and +25 °C



2 W max. @ 10 MHz Reference Off (Mute on)

Mute

Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal


Mechanical & Environmental

Temperature Range (ambient)

Operating: -40 to +55 °C
Storage: -40 to +75 °C

Humidity

0 to 100 %

Altitude

15,000 feet [4572 m]

Dimension & Housing

91.55 (L) x 68 (W) x 42.5 (H) mm [3.60” (L) x 2.68” (W) x 1.67” (H)] without interface connector

Weight

350 g [0.77 lbs]

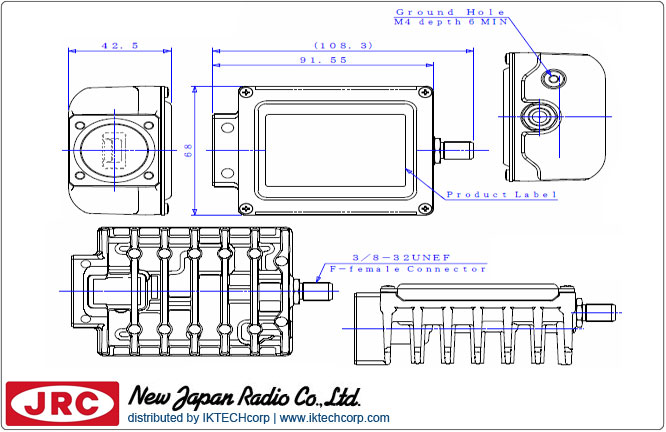

Technical Specifications Diagram



New Japan Radio NJRC NJT8302N 3W Ku-Band (Standard 14.0 to 14.5 GHz) Block Up Converter BUC N-Type Connector Input Mechanical Diagram Drawing



Compliance Standard

Inquire
