AvL 1200 1,2m SNG Vehicle-Mount Satellite Antenna 2-Port Ku-Band

AvL 1200 1,2m SNG Vehicle-Mount Satellite Antenna 2-Port Ku-Band

AvL 1000 1.0m SNG Vehicle-Mount Satellite Antenna 2-Port Precision Ku-Band

IKtechcorp is the distributor for AVL Antanna Systems, a leading manufacturer and supplier of commercial satellite equipment. AVL Technologies offers a wide range antennas used in the VSAT, DTH, COTM, Teleport, Cable, and Broadcast industries. Satellite, DTH, VSAT, Flyaway, quick deploy, receive only, RF, motorized auto point, vehicle antennas.
• Rx/Tx Feed: 2-Port Precision Ku-Band (LP)
- Receive: 10.95 - 12.75 GHz
- Transmit: 13.75 - 14.50 GHz
• Opt. Rx/Tx Feed: 2-Port Mode-Matched Ku-Band (CP)
• Stows to 16.3" H (41 cm H)
• Key Features
- Lightweight and Low-Profile
- Easy Vehicle Mounting
- Auto-Acquisition Controller



Product Code: avl_1200_ku

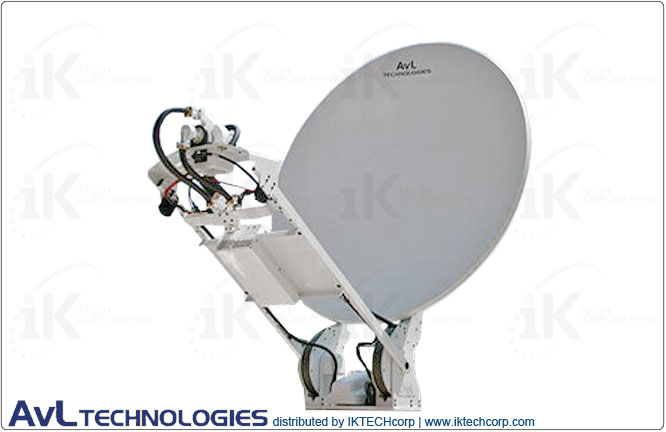

AvL 1200 1.2m SNG Vehicle-Mount Satellite Antenna 2-Port Ku-Band

AvL 1200 Standard SNG / Military 1.2m Standard Transportable Vehicle-Mount Satellite Antenna 2-Port Ku-Band Product Picture, Price, Image, Pricing


Summary

AvL 1200 1.2m SNG Vehicle-Mount / DriveAway Satellite Antenna 2-Port Ku-Band

AvL's 1.2m vehicle-mount / drive away SNG antenna systems offer strong performance in a small, lightweight and low-profile package. The 1.2m antenna systems are designed to exceed the highest global performance expectations.

Vehicle-Mount SNG Antennas are more precise and robust than mobile broadband antennas. Used for high data rates using high power amplifiers (HPA), they can be mounted on vehicles ranging from a medium SUV to a large box truck.

AvL antennas interface easily with all RF systems and are compliant with FCC and Intelsat requirements for 2° spacing as well as optional models for meeting Eutelsat and Asiasat criteria.

AvL 1200 SNG 1.2m Vehicle-Mount Satellite Antenna Systems feature:
• High-precision azimuth bearing
• Zero backlash AvL Cable Drive
• Non-load-bearing 1.2m AvL carbon fiber single-piece reflector
• Integrated reflector backing structure for minimized stow height
• Wide boom to allow large HPA envelope
• Jog control or fully automatic auto-acquisition controllers
• Stows to 16.3" H (41 cm H)
• Standard 2-port precision Ku-band feed (standard Cross-Pol comp.)
• Optional feeds include 2-port mode-matched Ku feed (enhanced Cross-Pol comp.) and 2-port L-band
• RF electronic mounting either on feed boom, back of reflector, base, or inside vehicle
• 2 axis AvL Cable Drive positioner with 400° Az & 0-90° El
• Limited function 3-axis jog controller with auto-stow
• Optional aerodynamic cowlings






Technical Specifications Diagram
