AvL 1210FD 1.2m Premium SNG Motorized FlyAway or DriveAway Antenna Ku-Band

AvL 1210FD 1.2m Premium SNG Motorized FlyAway or DriveAway Antenna Ku-Band

AvL 1210FD 1.2m Premium SNG Motorized FlyAway or DriveAway Antenna 2-port Precision Ku-Band (Standard Cross-Pol comp.)

IKtechcorp is the distributor for AVL Antanna Systems, a leading manufacturer and supplier of commercial satellite equipment. AVL Technologies offers a wide range antennas used in the VSAT, DTH, COTM, Teleport, Cable, and Broadcast industries. Satellite, DTH, VSAT, Flyaway, quick deploy, receive only, RF, motorized auto point, vehicle antennas.
• Rx/Tx Feed: 2-Port Precision Ku-Band (LP)
- Receive: 10.95 - 12.75 GHz
- Transmit:
13.75 - 14.50 GHz
- Standard Cross-Pol comp.
Packs into one ruggedized case
• Key Features
- Meets AirFreight Dimentions Requirements
- Easy Vehicle Mounting
- Auto-Acquisition Controller

Product Code: avl_1210fd_ku

AvL 1210FD 1.2m Premium SNG Motorized FlyAway or DriveAway Antenna 2-port Precision Ku-Band (Standard Cross-Pol comp.)

AvL 1210FD 1.2m Premium SNG Motorized FlyAway or DriveAway Antenna 2-port Precision Ku-Band Product Picture, Price, Image, Pricing


Summary

AvL 1210FD 1.2m Premium SNG Motorized FlyAway or DriveAway Antenna 2-port Precision Ku-Band

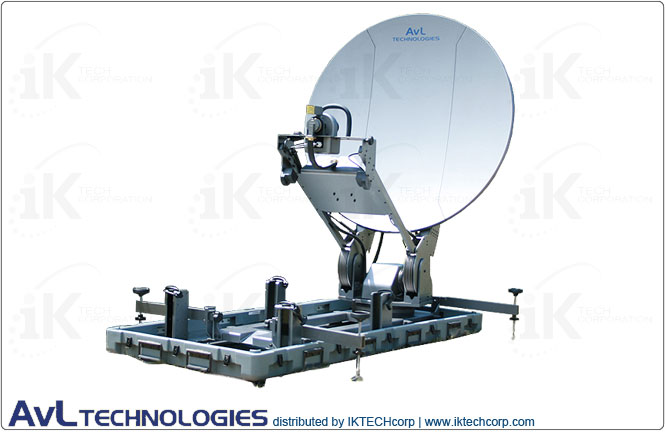

The Model 1.2m 1210FD FlyAway or DriveAway Premium Global SNG antenna provides video, voice, IP and data communication in a lightweight, easily transportable case-based solution. The antenna features a Ku-Band Precision feed (standard cross-pol comp.).

AvL's FlyAway or DriveAway (also called Fly&Drive) SNG Antenna systems provide versatility for satellite communication users who desire a vehicle-mounted antenna with all the portability of a flyaway mechanism in one antenna system. These systems are packaged into containers that meet air freight requirements allowing the system to be transported anywhere you can fly or drive.

AvL 1210FD Ku-Band 1.2m SNG System feature:
• Lightweight and packs into one ruggedized case
• 1.2m segmented 3-piece AvL Engineered Composite reflector
• 2-Port Ku-Band Mode-Matched feed (enhanced Cross-Pol comp.) with removable connection
• 25ft (8m) RG59 coax and Controller interconnect cables umbilical kit
• Fully Automatic Satellite Acquisition, Peaking, and Cross-Pol Adjustment using GPS, Compass, and Level Sensor Inputs with Entry of Desired Satellite
• Certified for Auto-commissioning on select services, CE Approval, Software for one continent
• One button auto-acquisition controller




Technical Specifications Diagram
