AvL 1220FA 1.6m SNG Motorized Tri-Band FlyAway Antenna C-Band

AvL 1220FA 1.6m SNG Motorized Tri-Band FlyAway Antenna C-Band

AvL 1220FA 1.6m SNG Motorized Tri-Band FlyAway Antenna 2-port C-Band

IKtechcorp is the distributor for AVL Antanna Systems, a leading manufacturer and supplier of commercial satellite equipment. AVL Technologies offers a wide range antennas used in the VSAT, DTH, COTM, Teleport, Cable, and Broadcast industries. Satellite, DTH, VSAT, Flyaway, quick deploy, receive only, RF, motorized auto point, vehicle antennas.
• Rx/Tx Feed: 2-port C-Band
- Receive: 3.625-4.20 GHz
- Transmit:
5.85 -6.425 GHz
Packs into three rugged cases
• 1220 Case-Based Positioner
• Requires special approval by satellite operator
• Key Features
- 15 minute set-up
- Zero Backlash AvL Cable Drive
- Auto-Acquisition Controller

Product Code: avl_1220fa_c

AvL 1220FA 1.6m SNG Motorized Tri-Band FlyAway Antenna 2-port C-Band

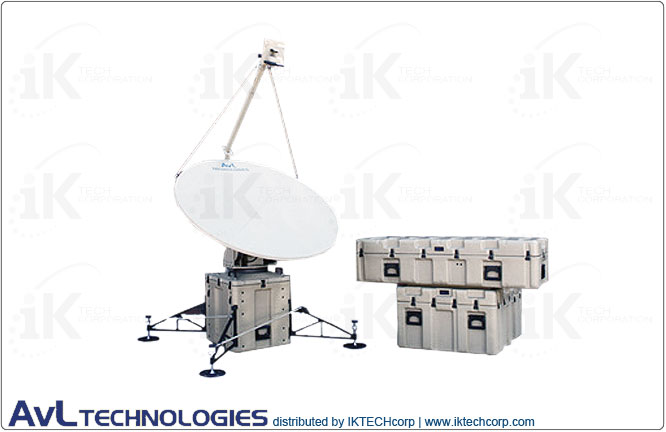

AvL 1220FA 1.6m SNG / Military Motorized Tri-Band FlyAway Antenna 2-port Precision C-Band Product Picture, Price, Image, Pricing


Summary

AvL 1220FA 1.6m SNG Motorized Tri-Band FlyAway Antenna 2-port C-Band

AvL's Model 1.6m 1220 FlyAway SNG antenna systems offer enhanced wind performance in a lightweight, portable, 2-man lift package. All 1220FA FlyAway SNG antenna systems have positioners integrated into cases for easy set-up; these antennas can be flown anywhere, then set up and operational within minutes.

AvL’s FlyAway SNG antennas  are designed to meet and exceed the highest performance requirements around the world to guarantee both satellite authority compliance and peak in performance, reliability and availability.

Each Flyaway Antenna is priced to include the AvL carbon fiber antenna and auto-acquisition controller for ease of operation. As with all AvL antenna systems, no laptop is necessary to operate the controller, the antennas interface with any modem, RF electronics, or satellite service.

AvL 1220FA C-Band 1.2m SNG / Military Systems feature:
• Packs into two rugged cases
• Enhanced wind tolerance of 45 mph gusting to 60 mph for Ku operation
• 1.6m Segmented 4-piece Carbon Fiber Reflector
• Easy 2-man lift - weighs <150 lbs
• 1220 case-based positioner
• Tri-band feed capability:
-Ku-Band (LP)
-Ka-Band (LP or CP)
-X-Band (CP)
-C-Band (LP or CP) available for some international locations
• Az/El drive system with patented AvL Cable Drive Positioner
• Elevation over azimuth mount geometry
• Polarization adjustment by motorized rotation of linear feeds
• Case-based systems with the positioner integrated into one case for stability and ease of set-up
• Fully compliant for FCC, Intelsat and WGS
• One button auto-acquisition controller
• 15-Minute Setup




Technical Specifications Diagram
Inquire

AvL 1220FA 1.6m SNG Motorized Tri-Band FlyAway Antenna 2-port C-Band

MECHANICAL SPECIFICATIONS

Az/El Drive Motorized AvL Zero Backlash Cable Drive (Patent Pending)
Polarization Drive System Motorized Rotation of Feed
Reflector Construction 1.6m Segmented 4-piece Carbon Fiber

Axis Travel
Azimuth ±200°
Elevation (operational) 0° - 90° with ±200° Az Travel
Polarization (LP feeds) ±95° Adjustable within <1°

Az/El Speed:
Slewing/Deploying (typical) 2°/sec Elevation: 1°/sec El
Peaking (typical) 0.2°/sec
Tracking (typical) 0.1°/sec

Motors 24 VDC Variable Speed, Constant Torque

Standard Interfaces:
BUC Mounting Feed boom or behind reflector (additional CFE case or optional case required)
RF Std. 50 ohm Coax (2) at base, cover flange at feed Tx port
Electrical 30 ft. cable with connectors for controller

Manual/Emergency Drive Handcranks for Az and El, Knob on Pol axis

Transit Configuration:
Three rugged weather-resistant plastic cases, total weight 375 lbs.
1220 Motorized Positioner 26" x 24" x 30", 150 lbs
Outriggers/Feed Boom 71” x 18” x 17”, 105 lbs. (includes Ku or Ka feed)
Reflector Panels 39” x 39” x 24”, 120 lbs.
Additional Feeds 43” x 28” x 21”, 70 lbs typical, dependent on feed options selected
C/X/Ka Feeds (up to 3 per case) 43” x 27” 20”, 70 lbs. typical (optional)
Set-up Time Less than 15 minutes.

ENVIRONMENTAL SPECIFICATIONS

Wind – Survival 80 mph in zenith position
Wind - Operational: ▼
Without Anchoring 30 mph
With Anchoring 30 mph gusting to 45 mph

Pointing Loss in Wind:
Ku-band 0.4 dB typical, 0.7 dB max in operational wind
Ka-band 1.0 dB typical, 1.7 dB max in operational wind

Temperature:
Operational -22° to 125° F (-30° to 52° C)
Survival -40° to 140° F (-40° to 60° C)

RF / ELECTRICAL SPECIFICATIONS Receive Transmit

Feed Type Opt. 2-Port C
Requires special approval by satellite operator



Frequency Range (GHz) 3.625-4.20 Ghz 5.85 -6.425 Ghz
Polarization Configuration Circular or Linear
Gain (mid-band) @ Horn Interface (dBi) 34.2 dBi 38.1 dBi
-3dB Beamwidth (mid-band) 0.8° 0.6°
Antenna Noise Temperature (midband) 48° K
Radiation Pattern Compliance 29-25 log Θ dBi , 3.5° > Θ < 36°
Maximum Feed Transmit (Tx) Power   1000 watts per port
G/T with 50˚ LNB, midband, clear horizon 15.8 dB/° K (with 20°K LNB)
Axial Ratio (CP only, within pointing cone ) 2.3 dB 1.3 dB
Linear Cross-Pol Isolation (in pointing cone) >30 dB >30 dB




CONTROLLER SPECIFICATIONS: STANDARD

Controller Type Std. Auto-Acquire with Opt. Ethernet IP Interface
Standard Feature
Fully-automatic satellite acquisition, with automatic azimuth, elevation and cross-polarization peaking; includes on-board, one-button deploy/acquire interface for pre-configured systems; includes on-board GPS, electronic compass, level sensors and auto-compensation; customer-configurable satellite list. Note: Beacon Receiver or Modem as acquisition signal source may be required for non-commercial satellites

Integration Embedded w/ Handheld, incl. Shelf-Mount P/S (optional 1RU w/ front-panel keypad + integral P/S)
User Interface Menu-driven display w/ keypad
Input Power 115/230 VAC (at rack); up to 200W
Software Upgrades/Options Inclined orbit tracking (using step-track or TLE track); automatic band sensing

CONTROLLER SPECIFICATIONS: OPTIONAL

Controller Type Opt. Enhanced Auto-Acquire with Ethernet IP Interface
Standard Feature
Fully-automatic satellite acquisition, with automatic azimuth, elevation and cross-polarization peaking; includes on-board, one-button deploy/acquire interface for pre-configured systems; includes on-board GPS, electronic compass, level sensors and auto-compensation; customer-configurable satellite list. Note: Beacon Receiver or Modem as acquisition signal source may be required for non-commercial satellites

Integration Embedded w/ Ethernet IP Interface (P/S optional) (optional rack-mount P/S available)
User Interface Intelligent/simple GUI for on-board or remote CFE laptop
Input Power 28V DC (at antenna positioner); optional 115/230 VAC rack-mount power supply; up to 200W
Software Upgrades/Options Inclined orbit tracking (using step-track, memory track, or TLE track); automatic band sensing

Available Options, Upgrades & Services

Optional:
• BUC/HPA mounting
• Optional 75 ohm coax
• Waveguide interconnect options
• Beacon receiver – inclined orbit tracking – resolvers/upgrade
• Grounding options (lightning conductor)
• Anchoring kit options
• Custom logo on reflector face (1- or 2-color; per AvL Logo Policy)
• Controller options – see above
• Spare parts kit
