| MECHANICAL SPECIFICATIONS |
| |
|
| Az/El Drive |
Motorized AvL Zero Backlash Cable Drive (Patent Pending) |
| Polarization Drive System |
Motorized Rotation of Feed
|
| Reflector Construction |

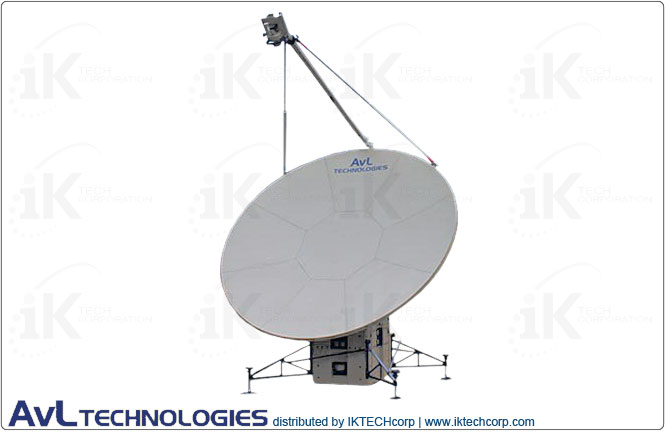

2.4m Segmented 9-piece Carbon Fiber Reflector |
| |
|
| Axis Travel ▼ |
|
| Azimuth |
±200° |
| Elevation (operational) |
0° - 90° with ±200° Az Travel |
| Polarization (LP feeds) |
±95° Adjustable within <1° |
| |
|
| Az/El Speed: ▼ |
|
| Slewing/Deploying (typical) |
2°/sec Elevation: 1°/sec El |
| Peaking (typical) |
0.2°/sec |
| |
|
| Motors |
24 VDC Variable Speed, Constant Torque |
| |
|
| Standard Interfaces: ▼ |
|
| BUC Mounting |
Feed boom or behind reflector (additional CFE case or optional case required) |
| RF |
Std. 50 ohm Coax (2) at base, cover flange at feed Tx port |
| Electrical |
30 ft. cable with connectors for controller |
| |
|
| Manual/Emergency Drive |
Handcranks for Az and El, Knob on Pol axis |
| |
|
| Transit Configuration: ▼ |
|
| Four or five rugged, weather-resistant plastic cases |
| 2020 Motorized Positioner |
26" x 24" x 30", 170 lbs |
| Outriggers/Feed Boom/Ku or Ka Feed |
44 x 44 x 18 inches, 150 lbs. (112 x 112 x 46 cm, 68 kg), includes Ku or Ka feed |
| Reflector Panels (2 cases) |
44 x 44 x 18 inches, 150 lbs. each (112 x 112 x 46 cm, 68 kg each) |
| Additional Feeds |
43 x 28 x 21 inches, 70 lbs. (109 x 71 x 53 cm, 32 kg) typical, dependent on feed options selected (optional) |
| Set-up Time |
Less than 15 minutes. |
|
| |
| ENVIRONMENTAL SPECIFICATIONS |
| |
|
| Wind – Survival |
80 mph in zenith position
|
| Wind - Operational: ▼ |
|
| Without Anchoring |
30 mph |
| With Anchoring |
30 mph gusting to 45 mph |
| |
|
| Pointing Loss in Wind: ▼ |
|
| Ku-band |
1.3 dB typical, 2.4 dB max |
| Ka-band |
1.0 dB typical, 2 dB max, 20 mph gusting to 30 mph |
| |
|
| Temperature: ▼ |
|
| Operational |
-22° to 125° F (-30° to 52° C) |
| Survival |
-40° to 140° F (-40° to 60° C) |
|
| |
| RF / ELECTRICAL SPECIFICATIONS |
Receive |
Transmit |
| |
|
|
| Feed Type ► |
Opt. 2-Port C – Std.
Requires special approval by satellite operator |
|
|
|
| Frequency Range (GHz) |
3.625-4.20 Ghz |
5.85 -6.425 Ghz |
| Polarization Configuration |
Circular or Linear |
| Gain (mid-band) @ Horn Interface (dBi) |
38.0 dBi |
41.8 dBi |
| VSWR |
1.30:1 |
|
| -3dB Beamwidth (mid-band) |
2.2° |
1.4° |
| Antenna Noise Temperature (midband) |
49° K |
|
| Radiation Pattern Compliance |
FCC 25.209, ITU-R S.580-6, IESS 207 |
| Maximum Feed Transmit (Tx) Power |
|
1000 watts per port |
| G/T with 50˚ LNB, midband, clear horizon |
19.5 dB/° K (with 20°K LNB) |
|
| Axial Ratio (CP only, within pointing cone ) |
2.3 dB |
1.3 dB |
| Cross-Pol Isolation On-axis within pointing cone |
35 dB / 30 dB |
35 dB / 30 dB |
| Linear Cross-Pol Isolation (in pointing cone) |
>30 dB |
>30 dB |
| Feed Port Isolation – TX to RX (dB) |
65 |
105 (includes filter) |
| |
|
|
|
| |
| CONTROLLER SPECIFICATIONS: STANDARD |
| |
|
| Controller Type ► |
Std. Auto-Acquire with Opt. Ethernet IP Interface
|
| Standard Feature ▼ |
|
Fully-automatic satellite acquisition, with automatic azimuth, elevation and cross-polarization peaking; includes on-board, one-button deploy/acquire interface for pre-configured systems; includes on-board GPS, electronic compass, level sensors and auto-compensation; customer-configurable satellite list. Note: Beacon Receiver or Modem as acquisition signal source may be required for non-commercial satellites
|
| |
|
| Integration |
Embedded w/ Handheld, incl. Shelf-Mount P/S (optional 1RU w/ front-panel keypad + integral P/S) |
| User Interface |
Menu-driven display w/ keypad |
| Input Power |
115/230 VAC (at rack); up to 200W |
| Software Upgrades/Options |
Inclined orbit tracking (using step-track or TLE track); automatic band sensing |
|
| |
| CONTROLLER SPECIFICATIONS: OPTIONAL |
| |
|
| Controller Type ► |
Opt. Enhanced Auto-Acquire with Ethernet IP Interface
|
| Standard Feature ▼ |
|
Fully-automatic satellite acquisition, with automatic azimuth, elevation and cross-polarization peaking; includes on-board, one-button deploy/acquire interface for pre-configured systems; includes on-board GPS, electronic compass, level sensors and auto-compensation; customer-configurable satellite list. Note: Beacon Receiver or Modem as acquisition signal source may be required for non-commercial satellites
|
| |
|
| Integration |
Embedded w/ Ethernet IP Interface (P/S optional) (optional rack-mount P/S available) |
| User Interface |
Intelligent/simple GUI for on-board or remote CFE laptop |
| Input Power |
28V DC (at antenna positioner); optional 115/230 VAC rack-mount power supply; up to 200W |
| Software Upgrades/Options |
Inclined orbit tracking (using step-track, memory track, or TLE track); automatic band sensing |
|
| |
| Available Options, Upgrades & Services |
| |
Optional:
• BUC/HPA mounting
• Optional 75 ohm coax
• Waveguide interconnect options
• Beacon receiver – inclined orbit tracking – resolvers/upgrade
• Grounding options (lightning conductor)
• Anchoring kit options
• Custom logo on reflector face (1- or 2-color; per AvL Logo Policy)
• Controller options – see above
• Spare parts kit
|
|
| |
