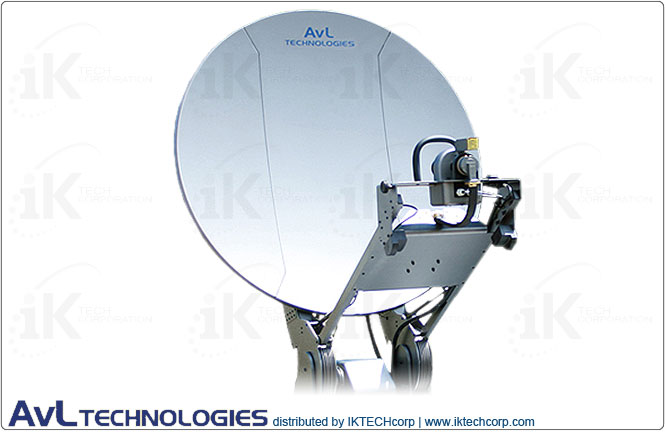

AvL 2412 Premium Military 2,4m Motorized Vehicle-Mount Satellite Antenna Ku-Band

Summary

AvL 2412 Premium SNG/Military 2.4m Motorized Transportable Vehicle-Mount Satellite Antenna 2-port Ku-band Feed (enhanced Cross-Pol comp.)

AvL's 2.4m vehicle-mount / drive away SNG antenna systems offer strong performance for standard Ku and C-band, and with Ka and X-band optional. The antennas feature integrated GPS and level sensors for automatic vehicle tilt compensation.

AvL’s SNG antennas are designed to meet and exceed the highest performance requirements around the world to guarantee both satellite authority compliance and peak in performance, reliability and availability. Typically these antennas are used in signal contribution for high data rate and bandwidth as well as high power broadcast or similar applications.

AvL 2412 Ku-Band Vehicle-Mount Premium SNG Antenna Systems feature:
• Non-load-bearing 2.4m AvL carbon fiber single-piece reflector with surface treatment for Ka-band
• Optional three-piece CF reflector with removable wings, manually folding hinged wings, or motorized folding hinged wings
• High-precision azimuth bearing
• Integrated backing structure for minimized stow height
• Wide booms to allow larger HPA envelope
• Jog control or fully automatic auto-acquisition controllers
• Feed options for Ku-, Ka- and X-band; optional C-band for international
• RF electronic mounting either on feed boom, back of reflector, base, or inside vehicle
• 25ft (8m) RG59 coax and controller interconnect cables
• Zero backlash AvL Cable Drive with 400° Az & 0-90° El movement
• Stows to 24" H (61 cm H)
• Optional saddlebag mount for larger HPAs
• High-torque elevation motor
• Through-pedestal cross-axis waveguide kit
• Optional Transmit Rotary Joint on Feed
• Limited function 3-axis jog controller with auto-stow
• Optional aerodynamic cowlings
• Aerodynamic cowling is available
