NJR2828L New Japan Radio PLL K-Band (17.852 to 18.588 GHz) Low-Noise Block Downconverter LNB N-Type Connector Input

NJR2828L New Japan Radio PLL K-Band (17.852 to 18.588 GHz) Low-Noise Block Downconverter LNB N-Type Connector Input

New Japan Radio NJRC NJR2828L PLL K-Band (17.852 to 18.588  GHz) Low-Noise Block Downconverter LNB N-Type Connector Input

IKtechcorp is the distributor for New Japan Radio Company (NJRC), a leading manufacturer and supplier of commercial satellite equipment. NJRC/JRC offers a wide range of Block Up Converters (BUCs), Low Noise Blocks (LNBs) and Low Noise Amplifiers (LNAs)

* RF Frequency:
• 17.852 - 18.588 GHz with 16.800 GHz LO
• 18.372 - 19.300 GHz with 17.400 GHz LO
* Low Noise Temperature:
• Noise Temperature: 101 K typ., 120 K max.
* Automatic Phase-locked to Internal/External Reference
* Reliable All-weather Performance

Product Code: NJR2828L

New Japan Radio NJRC NJR2828L PLL K-Band (17.852 to 18.588  GHz) Low-Noise Block Downconverter LNB N-Type Connector Input

New Japan Radio NJRC   NJR2828L PLL K-Band (17.852 to 18.588  GHz) Block Up Converter BUC N-Type Connector Input Product Picture, Image, Price, Pricing


Summary

For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.



Summary of Features:

RF Frequency 17.852 to 18.588 GHz
IF Frequency 1,052 to 1,788 MHz
Local Frequency 16.800 GHz
Input Interface N-type, female
Saturation Output Power +10 dBm min.
Linear Gain 55 dB min.
Power Requirement +18 to +30 VDC
Power Consumption 4.3 W max.
Weight 500g [1.1 lbs]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJR2828L PLL K-Band (17.852 to 18.588 GHz) Block Up Converter BUC N-Type Connector Input



TYPICAL SPECIFICATIONS


Output Interface Waveguide, WR42 (with Groove)
RF Frequency 17.852 to 18.588 GHz
IF Frequency 1,052 to 1,788 MHz
Local Frequency 16.800 GHz
Input Interface N-type, female
Noise Temperature 101 K typ., 120 K max.
Saturation Output Power +10 dBm min.
Linear Gain 55 dB min.
The Third Order Intercept Point +20 dBm min.
Local Oscillation Automatic Phase-locked to either Internal or External Reference
The local oscillator shall be automatically phase-locked to an internal reference when no external reference is present.

Requirement for External Reference
Frequency 10 MHz
Input Power -5 to +5 dBm @ Input port
Phase Noise -105 dBc/Hz max. @ 10 Hz, -130 dBc/Hz max. @ 100 Hz,
-150 dBc/Hz max. @ 1 kHz, -155 dBc/Hz max. @ 10 kHz
Internal Reference Stability Over Temperture and Initial Setting: +/- 1.5 ppm max.
Long term over All Conditions: +/- 3.5 ppm max.

L.O. Phase Noise -63 dBc/Hz max. @100 Hz, -73 dBc/Hz max. @1 kHz
-83 dBc/Hz max. @ 10 kHz, -93 dBc/Hz max. @ 100 kHz

Input Return Loss 10 dB
Output Return Loss 10 dB
Power Requirement +18 to +30 VDC
Power Consumption 4.3 W max.

Mechanical & Environmental
Temperature Range (ambient) -20 to +55 °C (Operating)
-20 to +55 °C(Storage)
Dimension & Housing ( without Interface Connectors ) 150 mm (L) x 80 mm (W) x 30 mm (H) [5.91” (L) x 3.15” (W) x 1.18” (H)] ( without Interface Connectors)
Weight 500g [1.1 lbs]


Technical Specifications Diagram

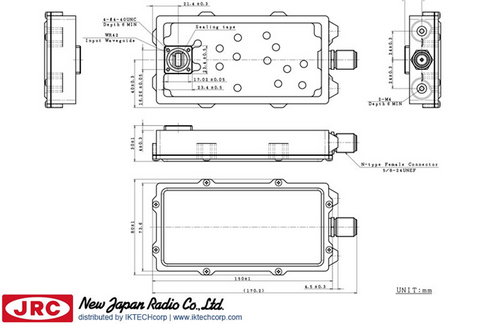

New Japan Radio NJRC   NJR2828L PLL K-Band (17.852 to 18.588  GHz) Block Up Converter BUC N-Type Connector Input Mechanical Diagram Drawing
