NJRC_NJT5836HF New Japan Radio 10W O3b Ka-Band (28,172 to 29,071 GHz) Block Up Converter BUC F-Type Connector Input

NJRC_NJT5836HF New Japan Radio 10W O3b Ka-Band (28,172 to 29,071 GHz) Block Up Converter BUC F-Type Connector Input

New Japan Radio NJRC NJT5836H 10W O3b Ka-Band (28.172 to 29.071 GHz) Block Up Converter BUC F-Type Connector Input

IKtechcorp is the distributor for New Japan Radio Company (NJRC), a leading manufacturer and supplier of commercial satellite equipment. NJRC/JRC offers a wide range of Block Up Converters (BUCs), Low Noise Blocks (LNBs) and Low Noise Amplifiers (LNAs)

The unit (10W Ka-SSPA with Upconverter for outdoor use) upconverts L-Band IF signal to Ka-band RF signal (27.652 to 29.071 GHz) and transmits with 10W (+40dBm) saturation output power.

• RF Frequency
- 28.172 - 29.071 GHz with 27.200 GHz LO
• High Efficiency Power Output
- Saturation Output Power: +40 dBm (10W)
- ACPR: -25 dBc max. with up to +37 dBm output
- Power Consumption: 170 W max.
• Ethernet M&C Function Equipped
- Gain Control: 15 dB range, 1 dB step
- Power Monitor: 12 dB dynamic range
• Reliable All-weather Performance

Product Code: NJRC_NJT5836HF

New Japan Radio NJRC NJT5836H 10W O3b Ka-Band (28.172 to 29.071 GHz) Block Up Converter BUC F-Type Connector Input

New Japan Radio NJRC NJT5836H 10W O3b Ka-Band (28.172 to 29.071 GHz) Block Up Converter BUC N-Type Connector Input Product Picture, Image, Price, Pricing

Summary
For more than 50 years, NJRC has kept their position as the leading manufacturer of Microwave Components in the market worldwide. NJR BUCs and LNBs have set the standards in price, performance and reliability for many years. All of the NJRC Microwave Components supplied are of JAPAN origin. All NJRC BUCs and LNBs, etc feature the RoHS compliance.
Summary of Features:

RF Frequency 28.172 to 29.071 GHz
IF Frequency 972 to 1,871 MHz
Local Frequency 27.200 GHz
Output Interface Waveguide, WR28 with Groove
Input Interface
IF / Ref. N-type, female (50 ohm)
Power 12 pin circular connector
M&C 12 pin circular connector


Saturation Output Power +40 dBm (10W)
ACPR -25 dBc max. with up to +37 dBm output
Power Consumption 170 W max.
Weight 4.5 kg [9.9 lbs]

Technical Specifications Diagram
See "Technical Specifications" Tab

New Japan Radio NJRC NJT5836H 10W O3b Ka-Band (28.172 to 29.071 GHz) Block Up Converter BUC F-Type Connector Input



TYPICAL SPECIFICATIONS

RF Frequency 28.172 to 29.071 GHz
IF Frequency 972 to 1,871 MHz
Local Frequency 27.200 GHz
Output Interface Waveguide, WR28 with Groove
Input Interface
IF / Ref. N-type, female (50 ohm)
Power 12 pin circular connector
M&C 12 pin circular connector

Saturation Output Power +40 dBm (10W)
ACPR -25 dBc max. with up to +37 dBm output
Conversion Linear Gain 61 dB min., 71 dB max.

Requirement for External Reference
Frequency 10 MHz (sine-wave)
Input Power -5 to +5 dBm @ Input port

Phase Noise
@ 10 Hz -105 dBc/Hz max.
@ 100 Hz -130 dBc/Hz max.
@ 1 kHz -150 dBc/Hz max.
@ 10 kHz -155 dBc/Hz max.

L.O. Phase Noise ▼
@ 100 Hz -60 dBc/Hz max.
@ 1 kHz -73 dBc/Hz max.
@ 10 kHz -83 dBc/Hz max.
@ 100 kHz -93 dBc/Hz max.

Input Return Loss 10 dB
Output Return Loss 15 dB
Power Consumption +22 to +56 V DC Power
Power Consumption 170 W max.

Monitor and Control
Interface Ethernet (Option: RS-232C)
Function Temperature / Output Power Monitor (12 dB Dynamic Range) / LO Status / Output Mute (TX ON/OFF) / Gain Control (15 dB Range, 1 dB Step)

Mechanical & Environmental
Temperature Range (Operating) -20 to +50 C
Dimension & Housing 168 mm (L) x 149.6 mm (W) x 90 mm (H)
6.61” (L) x 5.89” (W) x 3.54” (H)
without Interface Connectors
Weight 4.5 kg [9.9 lbs]


Technical Specifications Diagram

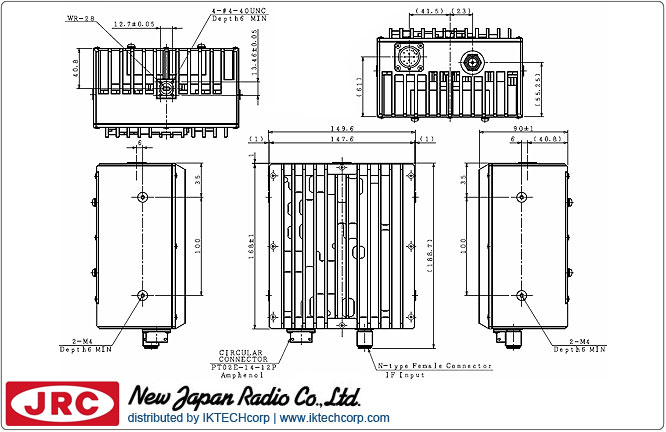

New Japan Radio NJRC NJT5836H 10W O3b Ka-Band (28.172 to 29.071 GHz) Block Up Converter BUC N-Type Connector Input Mechanical Diagram



Compliance Standard
