SED Systems Decimator D3 Digital Spectrum Analyzer Card

SED Systems Decimator D3 Digital Spectrum Analyzer Card

SED Systems Decimator D3 Digital Spectrum Analyzer Card

IKtechcorp is the distributor for SED Systems satellite, vsat communication products. LNB, BUC, Line Amplifier, Filter, Isolator, Unit Controller
SED Decimator D3 Card feature:
• Covers full satellite L-band plus cable and wireless bands from 5 MHz to 3 GHz
• Built-in Carrier Monitoring function
• External 10 MHz reference or internal reference
• Web browser or API control
• SNMP status interface
• Installs in half size PCIe slot or equipment enclosure


Product Code: Decimator_D3_Card

SED Systems Decimator D3 Digital Spectrum Analyzer Card

SED Systems Decimator D3 Card Digital Spectrum Analyzer


Summary



Small.   It is the smallest card (6.9 x 4.2 inches) available on the market.
Accurate.    Calibrated amplitude accuracy of 1 dB over the full operational temperature range, 0.5 dB at room temperature.
Fast.   Decimator can measure between 2 and 10 typical communications or broadcast carriers per second, depending on user settings.
Wide Dynamic Range.   Accepts signals from 5MHz to 3GHz and power levels from -110 to +5 dBm, with a noise floor of -115 dBm at an RBW of 1 kHz.
Network Centric.   Connect the Decimator Card to your facility LAN or WAN to provide desktop access to all technical staff worldwide.



Physical Interfaces   Measurement Speed*

RF inputs: SMA, 50 ohms
Control: RJ-45
Reference: SMA, 50 ohms
Power: PCIe or 3-pin Molex connector
Mechanical: half size PCIe card,
6.875 by 4.2 inches
  500 MHz span, 1 MHz RBW, 200 ms
200 MHz span, 30 kHz RBW, 630 ms
80 MHz span, 100 kHz RBW, 170 ms
3.5 MHz span, 8 kHz RBW, 90 ms
* Expected rates with 10 averages, speed optimization.

SED’s Decimator D3 is a third generation spectrum measurement and analysis card providing high-end performance at a low price. It can function as either an independent spectrum analyzer in a satellite, cable or terrestrial network or can easily be integrated into a satellite terminal, equipment enclosure or as part of a larger measurement network.

Decimator D3 uses state of the art digital technology and Fast Fourier Transformations to make lightning fast and accurate measurements. With a very low noise floor and large dynamic range, it is well-suited to measure any type of satellite, cable or terrestrial wireless carrier, including very small carriers, beacon signals and for carrier monitoring applications. Decimator accepts all signals from 5 MHz to 3 GHz and input power levels ranging from –110 to +5 dBm. RBW varies from 1 Hz to 15 MHz. The Decimator can be connected to an external 10 MHz reference for improved frequency accuracy and stability. All data communications with the Decimator occurs via its built-in Ethernet port.

It is only 4” x 7” x 0.8” and is therefore ideal for integration into small spaces. It can be installed in any
enclosure or computer chassis. It is a half size PCI express (PCIe) card and can be installed in an available
computer PCIe slot, providing power to the card. Alternately, it can be mounted on standoffs and powered
through a 3-pin connector (12 and 3.3 to 5 Vdc) for integration into any enclosure.

The Decimator’s powerful Graphical User Interface (GUI) is available using any standard web browser.
No additional software is required. The GUI is very easy to use and operates like most traditional spectrum
analyzers. It provides user-selectable colors for markers and traces, allows storage of multiple traces and
provides measurement reporting. The Decimator GUI also includes a powerful built-in Carrier Monitoring
function, which provides notification via email or SNMP of carrier measurements that exceed user-defined limits, offering you peace of mind that up to 100 of your carriers are operating as expected.

The Decimator provides network access to all technical staff connected to the facility network or a corporate wide area network. This allows all technical staff the ability to monitor feeds and carriers at any time and from
any location in the world using only a web browser.

For integration into a satellite terminal or measurement system, the Decimator can be operated via its
built-in GUI or the user can create a separate user interface using the publicly available API. An SNMP
status interface is also provided.




Technical Specifications Diagram
See "Technical Specifications" Tab

SED Systems Decimator D3 Digital Spectrum Analyzer Card



RF INPUT
Input Frequency Range: 5 MHz to 3,000 MHz
Useable Dynamic Range: -110 to +5 dBm (aggregate)
Noise Floor: -160 dBm/Hz typical at min atten -160 dBM/Hz typical at max atten
Phase Noise (worst case at 3 GHz) offset: -80 dBc/Hz at 1 kHz offset -95 dBc/Hz at 100 kHz -125 dBc/Hz at 1 MHz offset
Maximum Safe Input: +15 dBm

MEASUREMENTS
Amplitude Accuracy: ± 0.5 dB (at 25°C) / ± 1.0 dB (0 to 55°C)
Measurement conditions: 10 averages, input level between -8 dBm and -68 dBm, 3 sigma.
Frequency Accuracy: ± 2.6 ppm (internal) or as per external reference
Frequency Resolution: 1 Hz
Resolution Bandwidth: 1 Hz to 15 MHz
Analysis Bandwidth: up to 220 MHz


Spurious
Images: < -55 dBc (typical)
Aliasing: < -55 dBc (typical)
DC Offset: < -30 dBc (typical)
Averaging: up to 255 averages

OTHER SPECIFICATIONS
Reference Input: 10 MHz, -5 dBm to +13 dBm
Control Interface: TCP/IP API, SNMP, HTTP
Power Requirements: PCIe or 12/3.3 to 5 Vdc, 18W max
Operational Temperature Range: 0 to 55°C

MODES OF OPERATION
Raw Snapshot Mode: Number of IQ time samples is approx 32 million
Linear Power/Bin (4096 samples, up to 255 averages)
Log Power/Bin (4096 samples, up to 255 averages)
Raw IQ Samples - decimated 16 - 4092 in steps of 4 - sampling frequency up to 3.7 MHz
Selectable Spectral Inversion
Programmatic measurement and control over ethernet based API

Technical Specifications Diagram

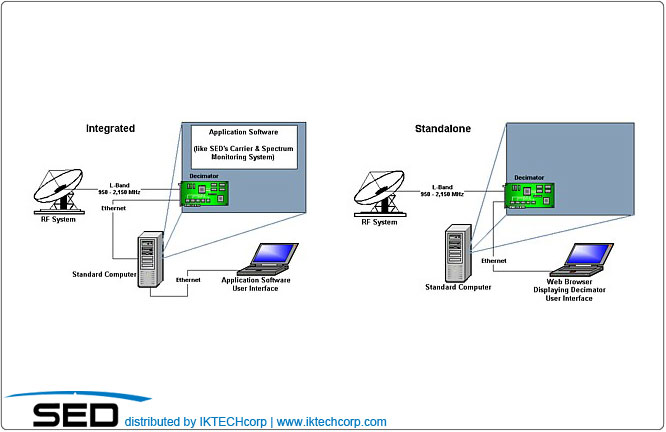

SED Systems Decimator D3 Card Digital Spectrum Analyzer Connection Integration Diagram



SED Systems Decimator D3 Card Digital Spectrum Analyzer Connection Integration Diagram



SED Systems Decimator D3 Card Digital Spectrum Analyzer Connection Integration Diagram



Compliance Standard
