VIKING ASC 300L-D Beacon Receiver, For Tracking CW, Modulated Beacons and Carriers, L-Band (930 MHz to 2300 MHz)

VIKING ASC 300L-D Beacon Receiver. For Tracking CW, Modulated Beacons and Carriers. L-Band (930 MHz to 2300 MHz)

Viking SATCOM is a leading manufacturer and distributor of commercial satellite communication Receive-Only antennas. Viking Satcom offers a “One Stop Shop” approach by offering and delivering state of the art satellite antennas. A complete line of products, communication systems, and accessories are available at cost effective prices.

Product Code: VIKING_ASC300L-D

Call for price

VIKING ASC 300L-D Beacon Receiver. For Tracking CW, Modulated Beacons and Carriers. L-Band (930 MHz to 2300 MHz)



Summary
VIKING ASC 300L-D Beacon Receiver. For Tracking CW, Modulated Beacons and Carriers. L-Band (930 MHz to 2300 MHz) The Model ASC 300L-D Beacon Tracking Receivers is a high performance unit that is designed to real time track the power density of a satellite beacon and output a DC voltage that is linearly proportional to the beacon power by utilizing a true, RMS-responding power detector. For Tracking CW, Modulated Beacons and Carriers. VIKING ASC 300L-D Feature: • L Band Satellite Beacon Receiver • Input Frequency: 930 MHz to 2300 MHz • Ethernet and Continuous Digital Streaming Options • The Model ASC300L-D Beacon Receiver is a designed for data tracking with side band rejection. • Designed to real time track the power density of a satellite beacon and output a DC voltage that is linearly proportional to the beacon power. • Applications: Antenna Tracking Controllers / Uplink Power Controllers

VIKING ASC 300-LW Beacon Receiver, L Band (930 MHz to 2300 MHz)

SYSTEM SPECIFICATIONS

Input Frequency	930 MHz to 2300 MHz
Pre-detection Bandwidth (Note 1)	60 kHz Standard
Input Level	-90dBm, minimum; -30dBm, maximum For full tracking range capability
Frequency Tuning	10 kHz Steps
Frequency Adjust	Front Panel or Remotely
Threshold Alarm	Adjustable on 0.1 V (0.2 dB) Steps from front panel
Input Impedance	75 Ohm
Input Connector	Type-F, Female (OPTIONAL) N-Type Female or Type SMA Female
Output Impedance	100 Ohm, single ended
Output Connector	Terminal plug and BNC Female
Tracking Gradient	0.5 V/dB, Standard
Tracking Response	0 to +10 VDC for a 20 dB input level change
System Level Adjust	0 to 60dB, 0.5dB Steps
Frequency Stability	< 1 ppm, 0c to +50 c
Frequency Reference	10 MHz (Internal)
Phase Noise	> 75 dB-Hz, 1 kHz from Carrier
Alarm Relay	Form-C
External LNB Power	+18 VDC, switchable In-Out,500 ma,max
	+15, +24 VDC, switchable In-Out,500 ma,max. (OPTIONAL)
CDS (OPTIONAL)	RS-232 or RS-422 DB-9 female connector on rear
Front Panel Display	Vacuum Fluorescent
M & C	RS-232 or RS-422/485 Switchable on rear panel
M & C Connector	DB-9, Female on rear
Ethernet 10/100 Base T	(OPTIONAL) Not installed on STD unit.
Ethernet Connector	RJ-45 on rear

MECHANICAL SPECIFICATIONS

Size	1.75" H X 16.00" D X 19.00" W
Weight	8lb. (3.63 kg)
Primary Power	100 - 240 VAC 1.2A, 47 - 63Hz, Auto-Sensing

ENVIRONMENTAL PERFORMANCE

Operating Temperature	0c to +50 c
Storage Temperature	-40c to +70 c
Humidity	95% RH @ 40 c

NOTES

*NOTE 1*	Requires + 25 kHz Downlink Stability

CDS Continuous Digital Streaming Option:
The streaming option associated with the ASC300 series of beacon tracking receivers provides a continuous, two byte, data stream running at 9600 baud that contains ten bits of signal strength level indication as well as lock or alarm condition of the unit. Other baud rates are available. A female DB9, interface connector on the rear of the unit is specifically dedicated for this option. RS-422 is optional.

Ethernet Option: Not installed on STD Units. Must be installed at factory.
Software Support: Windows 98/2000/XP/2003/VISTA/7 32bit & 64bit
Protocol: TCP/IP, UDP, HTTP, SNMP, ARP, Telnet, ICMP, BOOTTP, DHCP, SMTP

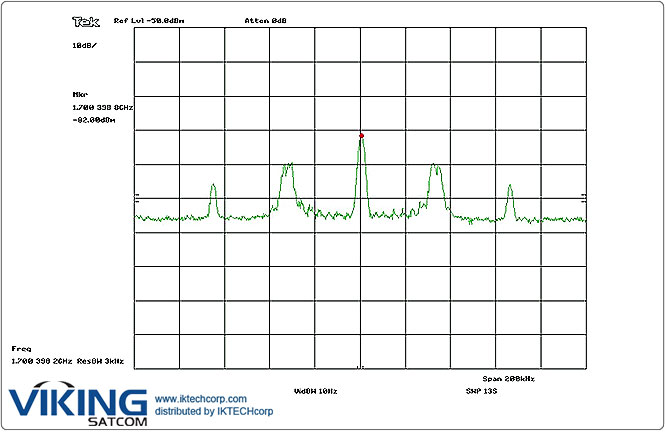

Technical Specifications Diagram

VIKING ASC300L-D Beacon Receiver. For Tracking CW, Modulated Beacons and Carriers. L-Band (930 MHz to 2300 MHz) Product Picture, Price, Image, Pricing Mechanical Diagram

Compliance Standard

Inquire

VIKING ASC 300L-D Beacon Receiver Datasheet (414.15KB)
