VIKING FLT-MFC11383 Terrestrial Interference C-Band Radar Elimination Filter (3.6 – 4.2 GHz)

VIKING FLT-MFC11383 Terrestrial Interference C-Band Radar Elimination Filter (3.6 – 4.2 GHz)

VIKING FLT-MFC11383 Terrestrial Interference C-Band Radar Elimination Filter (3.6 – 4.2 GHz)

IKtechcorp is the distributor for Viking SATCOM, a leading manufacturer and supplier of commercial satellite equipment. Viking SATCOM offers a wide range of products used in the VSAT, DTH, COTM, Mobile, TVRO, Educational, Teleport, Cable, and Broadcast industries. Satellite, DTH, VSAT, Flyaway, quick deploy, receive only, earth station, RF, prodelin, motorized auto point, vehicle antennas. Also featuring beacon receivers, de-icing systems, dehydrators, feeds, filters, mountss, redundant systems, snow covers etc.

Viking SATCOM is a leading manufacturer and distributor of commercial satellite communication Receive-Only antennas. Viking Satcom offers a “One Stop Shop” approach by offering and delivering state of the art satellite antennas. A complete line of products, communication systems, and accessories are available at cost effective prices.


Product Code: VIKING_FLT-MFC11383

VIKING FLT-MFC11383 Terrestrial Interference C-Band Radar Elimination Filter (3.6 – 4.2 GHz)

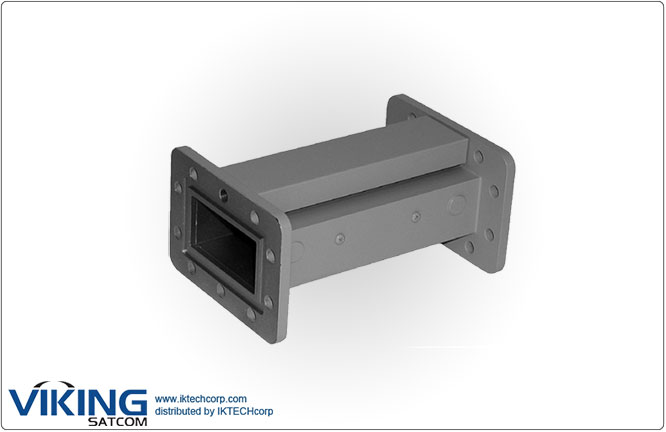

VIKING FLT-MFC11383 TI Filter, C Band Radar Elimination Filter (3.6 – 4.2 GHz) Product Picture, Price, Image, Pricing


Summary

VIKING FLT-MFC11383 Terrestrial Interference C-Band Radar Elimination Filter (3.6 – 4.2 GHz)

Similar in function to the Super-Extended model, this bandpass filter provides ultra-selectivity within those regions of the world receiving the Extended C-Band (600 MHz passband) making it an ideal filter choice for eliminating interference from Military Radar, WIMAX and any other out-of-band communications

VIKING FLT-MFC11383 Feature:
• C Band Terrestrial Interference Filter
• Passband: 3.6 - 4.2 GHz
• Lightweight, Low Profile
• Low Insertion Loss
• Also Rejects Tx Band (5800 - 6725MHz) >70dB Typ.
• Other frequency options available




Technical Specifications Diagram
See "Specifications" Tab

VIKING FLT-MFC11383 Terrestrial Interference C-Band Radar Elimination Filter (3.6 – 4.2 GHz)



TYPICAL SPECIFICATIONS




Passband

3.6 - 4.2 GHz

Insertion Loss

0.5 dB Approx @ Fo
1.0 dB Typ @ Band Edges

Return Loss 12dB Min.
14 dB Typ.

Rejection

25 dB Typ @ 3.55 GHz and 4.25 GHz
Tx Band (5800 - 6725MHz) >70dB Typ.

Flanges

CPR229G Input
CPR229F Output

Dimensions 5 3/8" x 3 7/8" x 2 3/4"
Finish Gray Lacquer
* Half gasket is supplied with each model.


Technical Specifications Diagram

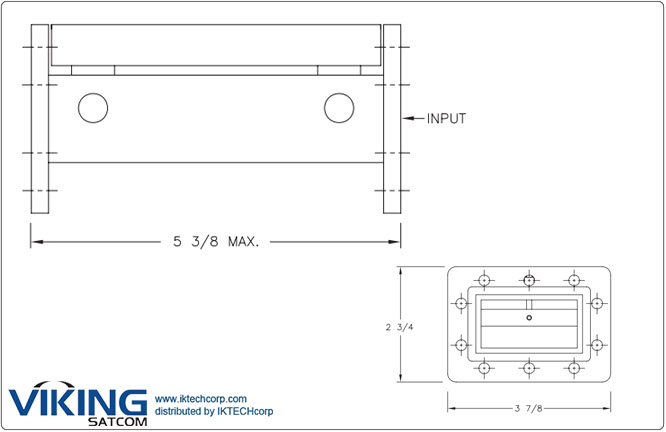

VIKING FLT-MFC11383 TI Filter, C Band Radar Elimination Filter (3.6 – 4.2 GHz) Product Picture, Price, Image, Pricing Mechanical Diagram



Compliance Standard

Inquire
