VIKING FLT-MFC-17600-15 Terrestrial Interference C-Band Transmit Reject Filter (3.400 - 3.800 GHz)

VIKING FLT-MFC-17600-15 Terrestrial Interference C-Band Transmit Reject Filter (3.400 - 3.800 GHz)

VIKING FLT-MFC-17600-15 Terrestrial Interference C-Band Transmit Reject Filter (3.400 - 3.800 GHz)

IKtechcorp is the distributor for Viking SATCOM, a leading manufacturer and supplier of commercial satellite equipment. Viking SATCOM offers a wide range of products used in the VSAT, DTH, COTM, Mobile, TVRO, Educational, Teleport, Cable, and Broadcast industries. Satellite, DTH, VSAT, Flyaway, quick deploy, receive only, earth station, RF, prodelin, motorized auto point, vehicle antennas. Also featuring beacon receivers, de-icing systems, dehydrators, feeds, filters, mountss, redundant systems, snow covers etc.

Viking SATCOM is a leading manufacturer and distributor of commercial satellite communication Receive-Only antennas. Viking Satcom offers a “One Stop Shop” approach by offering and delivering state of the art satellite antennas. A complete line of products, communication systems, and accessories are available at cost effective prices.


Product Code: VIKING_FLT-MFC-17600-15

VIKING FLT-MFC-17600-15 Terrestrial Interference C-Band Transmit Reject Filter (3.400 - 3.800 GHz)

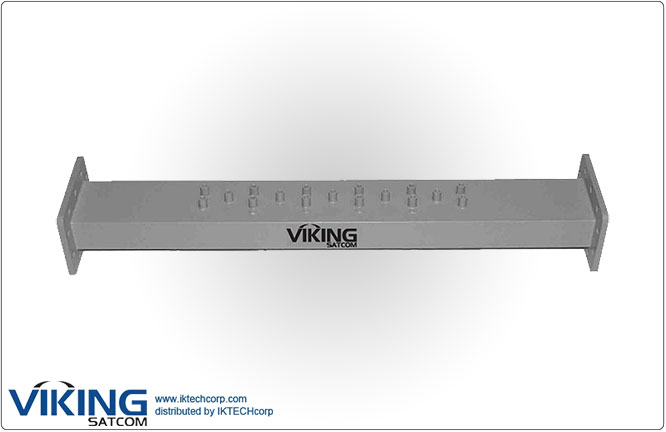

VIKING FLT-MFC-17600-15 C band Transmit Reject Filters (3.400 - 3.800 GHz) Product Picture, Price, Image, Pricing


Summary

VIKING FLT-MFC-17600-15 Terrestrial Interference C-Band Transmit Reject Filter (3.400 - 3.800 GHz)

This narrow band bandpass filter prevents undesired signals operating within the C-Bband from interfering with C-band single transponder reception that wider, full bandpass filters cannot prevent..

VIKING FLT-MFC-17600-15 Feature:
• Available for all Standard, Extended and Super Extended C-Band transponders
• Rejection:  20 dB Typ ±30 MHz from Fo
• Bandwidth:  36 MHz
• Flanges:  CPR229G (Input), CPR229F (Output), Other flanges available upon request




Technical Specifications Diagram
See "Specifications" Tab

VIKING FLT-MFC-17600-15 Terrestrial Interference C-Band Transmit Reject Filter (3.400 - 3.800 GHz)



TYPICAL SPECIFICATIONS




Frequency

3.400 - 3.800 GHz

Passband Fo +/-18 MHz

Passband Loss

1.00 dB Max

WSWR 1.5:1 Max

Rejection

20 dB Typ. +/-30 MHz From Fo

Flanges CPR229G (Input)
CPR229F (Output)
Alternate Configurations Available
Dimensions 15" x 3.88" x 2.75"
Finish Gray Lacquer


Technical Specifications Diagram

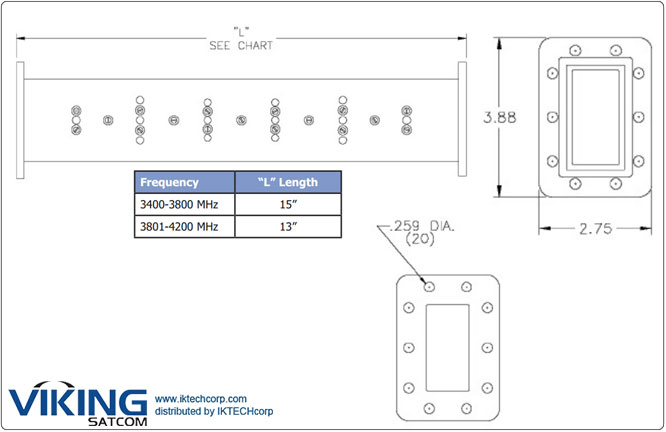

VIKING FLT-MFC-17600-15 C band Transmit Reject Filters (3.400 - 3.800 GHz) Product Picture, Price, Image, Pricing Mechanical Diagram



Compliance Standard
