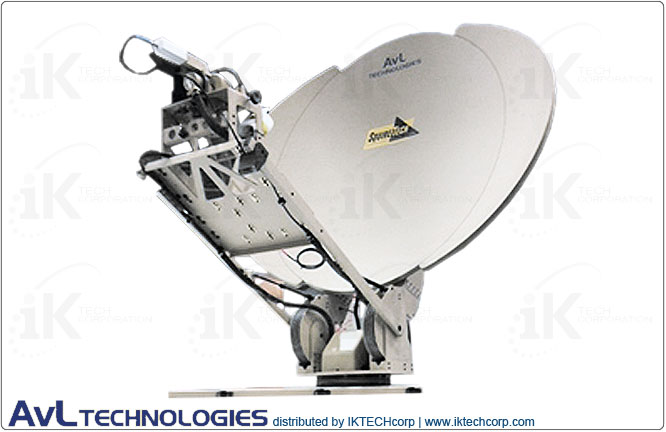

AvL 1210 Premium SNG 1.2m Motorized Vehicle-Mount Satellite Antenna Ku-Band

AvL 1210 Premium SNG 1.2m Motorized Vehicle-Mount Satellite Antenna Ku-Band

AvL 1210 Premium SNG 1.2m Motorized Vehicle-Mount / DriveAway Satellite Antenna 2-Port Ku-Band

IKtechcorp is the distributor for AVL Antanna Systems, a leading manufacturer and supplier of commercial satellite equipment. AVL Technologies offers a wide range antennas used in the VSAT, DTH, COTM, Teleport, Cable, and Broadcast industries. Satellite, DTH, VSAT, Flyaway, quick deploy, receive only, RF, motorized auto point, vehicle antennas.
• Rx/Tx Feed: 2-Port Precision Ku-Band (LP)
- Receive: 10.95 - 12.75 GHz
- Transmit: 13.75 - 14.50 GHz
- Standard Cross-Pol comp.
• Opt. Rx/Tx Feed: 2-Port Mode-Matched Ku-Band (CP)
Stows to 15" H (38.1 cm H)
• Key Features
- Lightweight and Low-Profile
- Easy Vehicle Mounting
- Auto-Acquisition Controller


Product Code: avl_1210_ku_premium

AvL 1210 Premium SNG 1.2m Motorized Vehicle-Mount / DriveAway Satellite Antenna 2-Port Ku-Band

AvL 1210 Premium SNG / Military 1.2m Motorized Transportable Vehicle-Mount Satellite Tx/Rx Antenna 2-Port Ku-Band Product Picture, Price, Image, Pricing


AvL 1210 Premium SNG 1.2m Motorized Vehicle-Mount / DriveAway Satellite Antenna 2-Port Ku-Band

AvL 1210 Ku-Band 1.2m Antenna Feature:
AvL's 1.2m vehicle mount SNG antenna systems offer strong performance in a small, lightweight and low-profile package. The 1.2m antenna systems are designed to exceed the highest global performance expectations.

AvL’s SNG antennas are designed to meet and exceed the highest performance requirements around the world to guarantee both satellite authority compliance and peak in performance, reliability and availability. Typically these antennas are used in signal contribution for high data rate and bandwidth as well as high power broadcast or similar applications.

• Model 1210 with 2-port precision Ku-band feed (standard Cross-Pol comp.);
• Optional feeds include 2-port Ka (commercial or miliary) and 2-port X
• High precision azimuth bearing
• Zero backlash AvL Cable Drive with 400° Az & 0-90° El movement
• Non-load-bearing 1.2m AvL carbon fiber single-piece reflector with surface treatment for Ka-band
• Integrated reflector backing structure for minimized stow height
• Stows to 15" H (38.1 cm H)
• Wide boom to allow large HPA envelope
• Optional saddlebag mount for larger HPAs
• High-torque elevation motor
• Through-pedestal cross-axis waveguide kit
• Jog control or fully automatic auto-acquisition controllers
• RF electronic mounting either on feed boom, back of reflector, base, or inside vehicle
• 25ft (8m) RG59 coax and controller interconnect cables
• Optional Transmit Rotary Joint on Feed
• Limited function 3-axis jog controller with auto-stow
• Optional aerodynamic cowlings


Technical Specifications Diagram

AvL 1210 Premium SNG 1.2m Motorized Vehicle-Mount / DriveAway Satellite Antenna 2-Port Ku-Band

Az/El Drive Motorized AvL Zero Backlash Cable Drive (Patent Pending)
Polarization Drive System Motorized Worm Gear Drive
Reflector Construction 1.2m Single Piece Carbon Fiber
Axis Travel
Azimuth 400° (±200°)
Mechanical 0° to 90° of Reflector Boresight
Electrical Standard Limits at 5° to 65° (CE approval) or 0° to 90°
Polarization ±95° for 2-port and 3-port Feeds;   ±50° for 2-port Wideband and 4-port Feeds
Az/El Speed
Slewing/Deploying (typical) 2°/second Az;   1°/second El
Peaking (typical) 0.2°/second
Motors 24 VDC Variable Speed, Constant Torque
RF Interface
BUC/HPA Mounting Feed Boom (50 lbs.; Max. BUC envelope: 22 L x 13.75 W x 8.5 H inches (55.9 L x 34.9 W x 21.6 H cm)), Rear of Reflector or Inside Vehicle
Axis Transition Twist-Flex or Rotary Joints
Waveguide WR75 Cover Flange at Interface Point
Coax RG59 run from feed to base plus 25 ft (8m)
Electrical Interface One 25 ft (8 m) Cable with Connectors for Controller
Manual/Emergency Drive Handcrank on Az, El and Pol axes
Weight (approximate) 115 - 165 lbs. (52 - 75 kg) depending on options selected
Stowed Dimensions 69 L x 48 W x 16.3 H inches (175 L x 122 W x 41 H cm)
Wind - Survival Deployed:   75 mph (121 kph);   Stowed:   100 mph (161 kph)
Wind - Operational 30 mph (48 kph), Gusts to 45 mph (72 kph)
Pointing Loss in Wind (Ku RX): ▼
20 mph (32 kph) 0.2 dB typical
30 mph gusting to 45 mph 0.8 dB typical

Operational -22° to 125° F (-30° to 52° C)
Survival -40° to 140° F (-40° to 60° C)
Feed Type Std. 2-Port Ku-Band DBS bands avail. upon request

Frequency Range (GHz) 10.95 - 12.75 13.75 - 14.50
Polarization Configuration Linear Orthogonal Standard, Optional Co-Pol
Gain (mid-band) (dBi) 41.6 43.1
Beamwidth (-3 dB) 1.5° 1.2°
G/T, midband, clear horizon 21.4 dB/˚ K with 50° LNB
Antenna Noise Temperature @ 20° El, midband 54° K
Radiation Pattern Compliance FCC 25.209, ITU-R S.580-6, IESS 208
Power Handling Capability
1 KW per port
VSWR 1.30:1 1.30:1
Axial Ratio, CP only, within Pointing Cone (dB)

Cross-Polarization Isolation (dB)

On Axis 35 35
Within Pointing Cone 28 Std. Precision 30 Std. Precision

25 Mode-Match 35 Mode-Match
Feed Port Isolation – Tx to Rx (dB) 35 80 (includes filter)
Controller Type Three-axis Jog Control & Display with Auto-Stow
Optional Upgrades
Semi-automatic Operation Drive to calculated position based on operator entered vehicle location, heading, plus satellite (longitude or listed)
Automatic Operation Drive to calculated position based on auto GPS and Flux-Gate Compass data and satellite peaking with LNB signal
Auto-acquisition One-button acquisition of selected satellite including peaking and optimization of cross-pol (certified for auto- commissioning on most satellite services)
Size Two Rack Units for Semi-automatic & Automatic Controllers Single Rack Unit for Auto-acquisition
Input Power 110/240 VAC, 1 ph, 50/60 Hz, 6/3A peak, 1A continuous
Optional Controller AvL AAQ
Features AvL one button auto-acquisition of selected satellites, including peaking and optimization of cross pol.   Internal movement detector and automatic stow.   Includes a hand-held control and separate power supply.   Certified for auto-commissioning on most satellite services.
Size Embedded ACU with separate1 RU power supply
Input Power 100 - 240 VAC 50/60 Hz   4 A peak, 300 W power supply
Available Options, Upgrades & Services
• Upgrade Feed to:
- 2-Port Ku-Band Mode-Match
- 4-Port Ku-Band Wideband
- 2 or 4-Port Ka-Band
- 2-Port X-Band
• Optional H/V switch (Ku-Band wideband)
• Optional Rotary Joint on Pol Axis with opt. Flex W/G to BUC
• Add Co-polarization Kit (for 2-port Ku feeds only) - configures Rx and Tx to same polarization sense
• Mounting Pallet (adds 2.0” (5 cm) to stow height)
• Add BUC/HPA Mounting (NOTE: minimum elevation may be restricted by these options)
• Upgrade to Custom RF/IF I/O cabling configurations available
• Custom Colorization (contact factory for available colors)
• Add Custom Logo on Reflector Face (1- or 2-Color; per AvL Logo Policy)
• Spare Parts Kit
Technical Specifications Diagram
Compliance Standard
